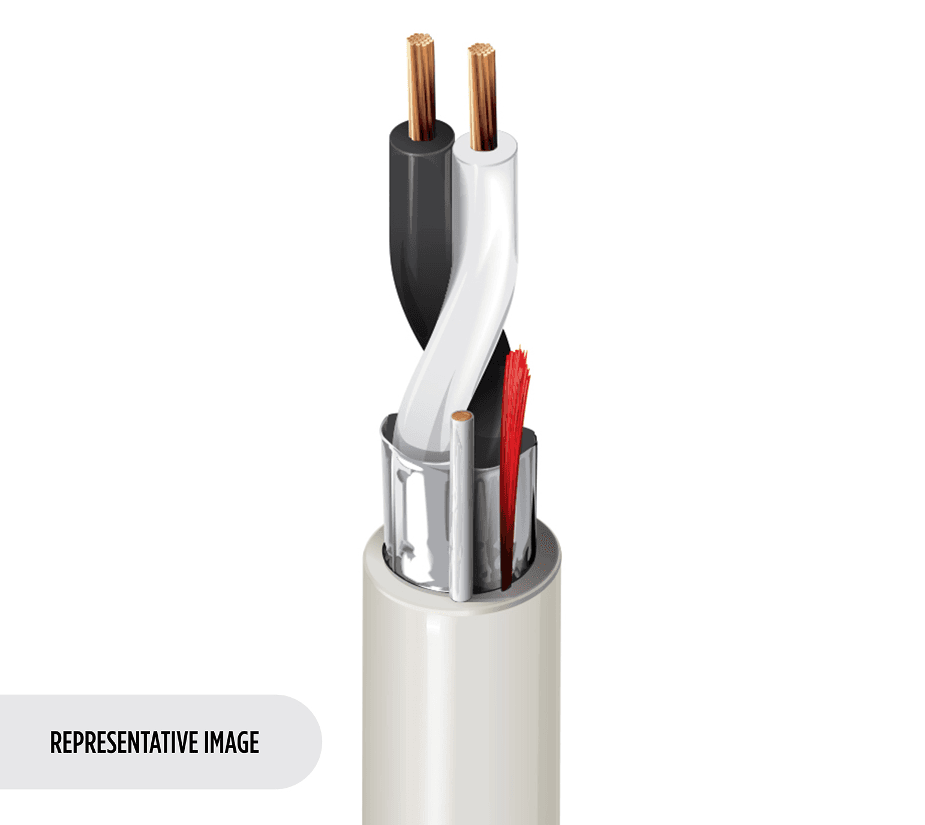

Belden 6400FE 877U, Multi Conductor 2C 20 AWG FLRST FS Natural
SKU:Belden 6400FE 877U
● Auf Lager
Beschreibung
Belden 6400FE 877U is a Security & Commercial Audio Cable for intercom/PA systems and sound/audio installations in plenum spaces. It features 2 stranded 20 AWG BC - Bare Copper conductors with PVC - Polyvinyl Chloride insulation and an overall Beldfoil tape shield (foil side out) with drain for noise protection. The PVC - Polyvinyl Chloride jacket includes a ripcord and is Plenum-CMP rated, with sequential footage marking every two feet to support measuring and pulls.
Key Features
- 2 stranded 20 AWG BC - Bare Copper conductors for Security & Commercial Audio wiring.
- PVC - Polyvinyl Chloride insulation with color code: Black, Red.
- Overall shield & drain using tape with Bi-Laminate (Alum+Poly) and 100% coverage.
- Drainwire type: 22 AWG (7x30) TC.
- PVC - Polyvinyl Chloride jacket with ripcord: Yes.
- Plenum-CMP rated; flammability / reaction to fire: NFPA 262, UL 910 (Plenum), FT6.
- Sequential footage marking every two feet for easier measuring and pulls.
Technical Specs
Construction & Physical Specs
| Number of conductors | 2 |
|---|---|
| Conductor size | 20 AWG |
| Stranding | 7x28 |
| Insulation thickness (nom.) | 0.009 in (0.23 mm) |
| Insulation diameter (nom.) | 0.054 in (1.4 mm) |
| Shield construction | Overall Shield & drain |
| Jacket thickness (nom.) | 0.015 in (0.38 mm) |
| Overall cable diameter (nominal) | 0.142 in (3.61 mm) |
| Bulk cable weight | 15 lbs/1000ft |
| Non-Plenum number | 5400FE |
Electrical Characteristics
| Nom. conductor DCR | 10.3 Ohm/1000ft |
|---|---|
| Nom. capacitance cond-to-cond | 56 pF/ft (180 pF/m) |
| Nom. capacitance cond-to-other (Conds + Shield) | 100.8 pF/ft (330.7 pF/m) |
| Max. current | 8 Amps per Conductor @ 25°C |
| UL voltage rating | 300 V |
Environmental & Mechanical Ratings
| UL temperature | 75°C |
|---|---|
| Operating temperature | 0°C to +75°C |
| Bend radius (stationary min.) | 1.4 in (36 mm) |
| Bend radius (installation min.) | 1.4 in (36 mm) |
| Max. pull tension | 34 lbs (15 kg) |
| Environmental suitability | Indoor - Plenum, Indoor |
Compliance & Certifications
| NEC / UL compliance | Article 800, CMP |
|---|---|
| CEC / C(UL) compliance | CMP |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
Applications
- Use in intercom/PA systems and sound/audio systems.
- Install indoors where Indoor - Plenum suitability is required.
Belden™ and all associated trademarks are the property of their respective owners.
Spezifikationen
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 20 AWG |
| Stranding | 7x28 |
| Insulation thickness (nom.) | 0.009 in (0.23 mm) |
| Insulation diameter (nom.) | 0.054 in (1.4 mm) |
| Shield construction | Overall Shield & drain |
| Jacket thickness (nom.) | 0.015 in (0.38 mm) |
| Overall cable diameter (nominal) | 0.142 in (3.61 mm) |
| Bulk cable weight | 15 lbs/1000ft |
| Non-Plenum number | 5400FE |
| Nom. conductor DCR | 10.3 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 56 pF/ft (180 pF/m) |
| Nom. capacitance cond-to-other (conds + Shield) | 100.8 pF/ft (330.7 pF/m) |
| Max. current | 8 Amps per Conductor @ 25°C |
| UL Voltage Rating | 300 V |
| UL temperature | 75°C |
| Operating temperature | 0°C to +75°C |
| Bend radius (stationary min.) | 1.4 in (36 mm) |
| Bend radius (installation min.) | 1.4 in (36 mm) |
| Max Pull Tension | 34 lbs (15 kg) |
| Environmental suitability | Indoor - Plenum, Indoor |
| NEC / UL compliance | Article 800, CMP |
| CEC / C(UL) compliance | CMP |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
Abbildungen dienen nur als Referenz. Spezifikationen können sich ohne Vorankündigung ändern — prüfen Sie vor dem Kauf die Eignung für Ihre Anwendung. Die Herstellerdokumentation ist maßgeblich.
