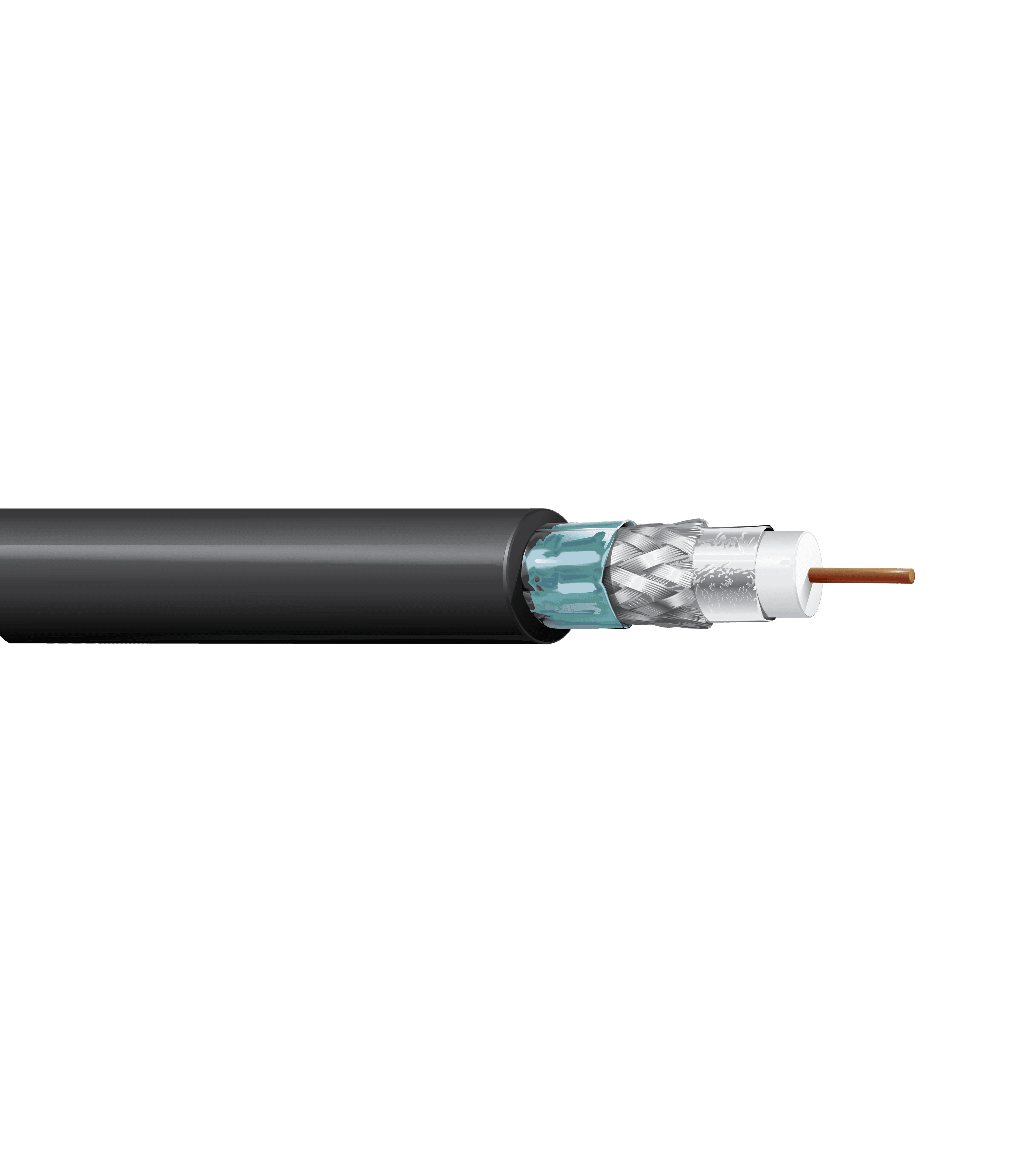

Belden 1794A 010 SDI Coax Serie 7 16 AWG BC CMR Negro
Descripción
El Belden 1794A 010 es un cable coaxial SDI de 75 Ohm, Serie 7, con conductor sólido de cobre desnudo de 16 AWG 0.051". Incorpora aislamiento de PE espumado, una construcción apantallado y una cubierta de PVC negra. Este cable cuenta con clasificación CMR.
Aplicaciones
- Uso en conectividad coaxial SDI cuando se requiere un cable coaxial de 75 Ohm.
- Seleccionar para instalaciones que requieren una construcción coaxial apantallado para ayudar a mantener la integridad de la señal durante el tendido del cable.
- Instalar cuando se requiere una cubierta con clasificación CMR.
Especificaciones
| Attribute | Value |
|---|---|
| Coax construction | Coaxial |
| Coax Type | Coaxial |
| Conductor stranding | Solid |
| Conductor nominal diameter | 0.051 in |
| Conductor Material | BC - Bare Copper |
| Conductor Type | Solid Conductor |
| Insulation Material | PE - Polyethylene (Foam) |
| Dielectric Material | Foamed HDPE-HI-Density Polyethylene |
| Insulation nominal diameter | 0.225 in (5.72 mm) |
| Color Code | White |
| Shield Type | Both, braid over foil |
| Shield layer 1 | Tape, Tri-Laminate (Alum+Poly+Alum), Dufoil®, 100% |
| Shield layer 2 | Braid, Tinned Copper (TC), 95% |
| Shield layer 3 | Tape, Bi-Laminate (Alum+Poly), Beldfoil®, 100% (With Shorting Fold and Bonded to inside of Jacket for easy preparation) |
| Flooded | No not flooded over braid |
| Jacket Material | PVC-Polyvinyl Chloride |
| Jacket Color | Black |
| Overall cable diameter (nominal) | 0.320 in (8.13 mm) |
| Jacket nominal diameter | 0.320 in (8.13 mm) |
| Bulk cable weight | 55 lbs/1000ft |
| Nom. velocity of prop. | 84% |
| Nom. capacitance (Cond-to-Shield) | 16.1 pF/ft (52.8 pF/m) |
| Nom. conductor DCR | 4.0 Ohm/1000ft |
| Nom. outer shield DCR | 1.9 Ohm/1000ft (6.2 Ohm/km) |
| Return loss (5 - 1600 MHz) | 23 dB |
| Return loss (1600 - 4500 MHz) | 21 dB |
| Return loss (4500 - 6000 MHz) | 15 dB |
| Attenuation (Nom.) 1 MHz | 0.17 dB/100ft |
| Attenuation (Nom.) 3.58 MHz | 0.30 dB/100ft |
| Attenuation (Nom.) 5 MHz | 0.35 dB/100ft |
| Attenuation (Nom.) 6 MHz | 0.38 dB/100ft |
| Attenuation (Nom.) 7 MHz | 0.40 dB/100ft |
| Attenuation (Nom.) 10 MHz | 0.48 dB/100ft |
| Attenuation (Nom.) 12 MHz | 0.52 dB/100ft |
| Attenuation (Nom.) 25 MHz | 0.74 dB/100ft |
| Attenuation (Nom.) 55 MHz | 1.08 dB/100ft |
| Attenuation (Nom.) 67.5 MHz | 1.20 dB/100ft |
| Attenuation (Nom.) 71.5 MHz | 1.24 dB/100ft |
| Attenuation (Nom.) 88.5 MHz | 1.37 dB/100ft |
| Attenuation (Nom.) 100 MHz | 1.46 dB/100ft |
| Attenuation (Nom.) 135 MHz | 1.70 dB/100ft |
| Attenuation (Nom.) 143 MHz | 1.75 dB/100ft |
| Attenuation (Nom.) 180 MHz | 1.97 dB/100ft |
| Attenuation (Nom.) 270 MHz | 2.43 dB/100ft |
| Attenuation (Nom.) 360 MHz | 2.83 dB/100ft |
| Attenuation (Nom.) 540 MHz | 3.60 dB/100ft |
| Attenuation (Nom.) 720 MHz | 4.20 dB/100ft |
| Attenuation (Nom.) 750 MHz | 4.30 dB/100ft |
| Attenuation (Nom.) 1000 MHz | 5.00 dB/100ft |
| Attenuation (Nom.) 1500 MHz | 6.20 dB/100ft |
| Attenuation (Nom.) 2000 MHz | 7.40 dB/100ft |
| Attenuation (Nom.) 2250 MHz | 7.80 dB/100ft |
| Attenuation (Nom.) 3000 MHz | 9.20 dB/100ft |
| Attenuation (Nom.) 4500 MHz | 11.7 dB/100ft |
| Attenuation (Nom.) 6000 MHz | 13.77 dB/100ft |
| Installation min. bend radius | 3.2 in (81 mm) |
| Max Pull Tension | 111 lbs (50.3 kg) |
| Outdoor | No not outdoor grade material |
| Environmental suitability | Indoor/Outdoor, Indoor, UV Resistance, Aerial - Black only, When supported by messenger Wire |
| CEC / C(UL) compliance | CMG |
| Flammability / reaction to fire | UL1666 Vertical Shaft |
| CPR compliance | CPR Euroclass: Eca |
| Sustainability | CA Prop 65 |
| European directive compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Item Type | Belden Coaxial Cable |
| Other Part Numbers | 1794A 010, 1794A 010100, 1794A 010250, 1794A 010500, 1794A 0101000 |
| Priced Per | FT |
