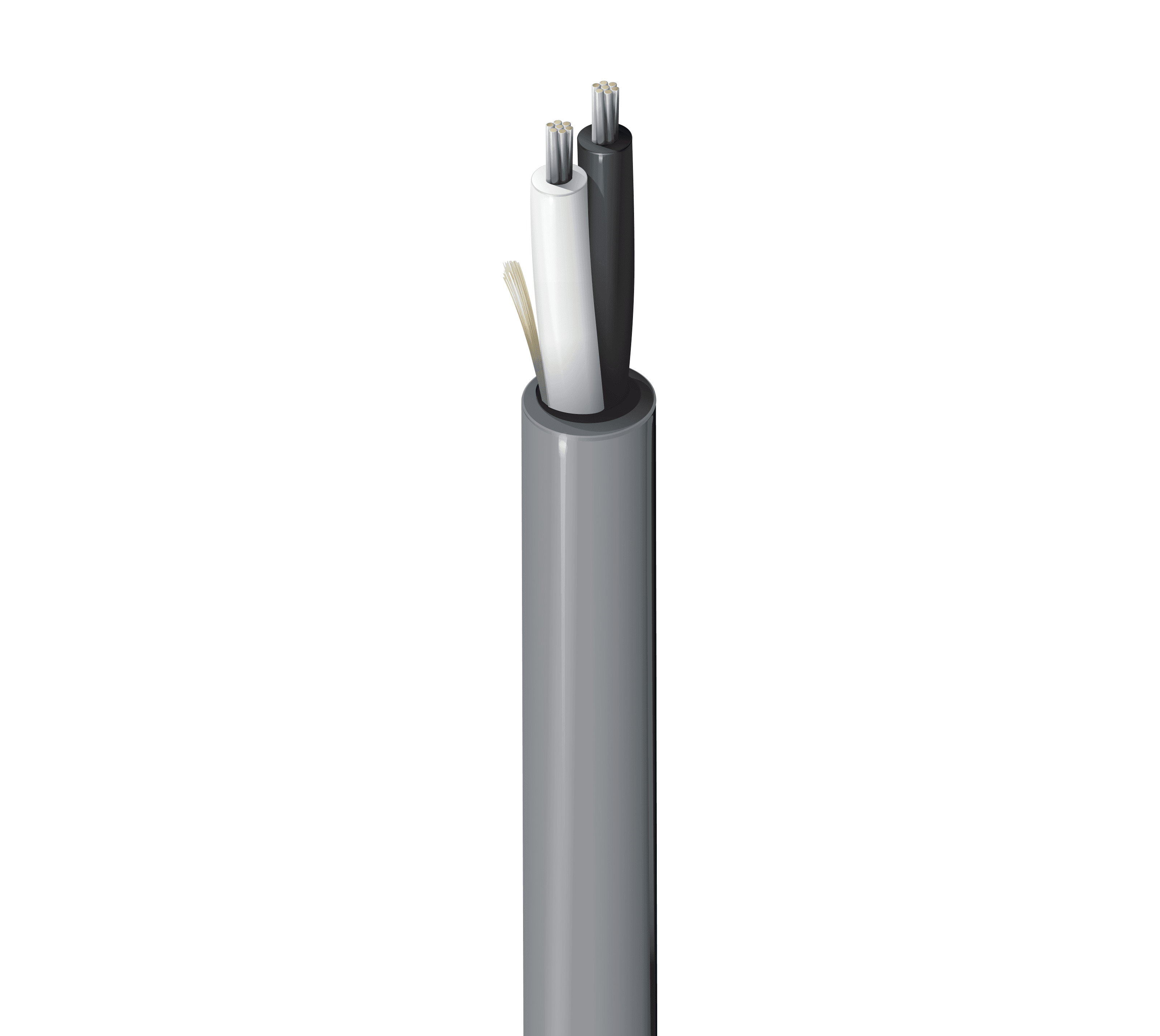

Belden 5100UP 010, Commercial Audio Cable CL3 2C 14 AWG PVC
SKU:Belden 5100UP 010
● En stock
Descripción
Belden 5100UP 010 is a CL3-rated commercial audio cable for security system, intercom/PA, audio/speaker, and power-limited controls applications. It is built with 2-14 AWG highly flexible stranded bare copper conductors with PVC insulation, plus a PVC jacket with ripcord for easier handling and stripping. The cable is UL listed for 300 V (CL3) and is designed for indoor (not riser or plenum) installations. It meets NEC / UL compliance Article 725, CL3 and flammability / reaction to fire requirements including UL 1685 UL loading and IEC 60332-1-2.
Key Features
- CL3-rated commercial audio cable for power-limited circuit installations.
- 2-14 AWG highly flexible stranded bare copper conductors with PVC insulation.
- PVC jacket with ripcord for faster stripping and cleaner installs.
- UL listed for 300 V (CL3).
- Designed for indoor (not riser or plenum) environments.
Technical Specs
Construction & Materials
| Number of conductors | 2 |
|---|---|
| Conductor size | 14 AWG |
| Conductor stranding | 42x30 |
| Conductor material | BC - Bare Copper |
| Insulation material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.020 in (0.51 mm) |
| Nom. insulation diameter | 0.115 in (2.92 mm) |
| Insulation color code | Black, White |
| Jacket material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.018 in (0.46 mm) |
| Overall cable diameter (nominal) | 0.266 in (6.76 mm) |
Performance & Electrical Characteristics
| Nom. conductor DCR | 2.42 Ohm/1000ft |
|---|---|
| Nom. capacitance cond-to-cond | 29 pF/ft (95 pF/m) |
| Nom. inductance | 0.17 μH/ft (0.56 μH/m) |
| Max. current | 25 Amps per Conductor @ 30°C |
Environmental & Mechanical Ratings
| UL temperature | 75°C |
|---|---|
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 2.7 in (69 mm) |
| Bend radius (installation min.) | 2.7 in (69 mm) |
| Max. pull tension | 106.6 lbs (48.35 kg) |
| Bulk cable weight | 39 lbs/1000ft |
Compliance & Certifications
| NEC / UL compliance | Article 725, CL3 |
|---|---|
| Flammability / reaction to fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
Applications
- Use for security system wiring where a CL3-rated commercial audio cable is required.
- Support intercom/PA runs that need dependable signal delivery in indoor installations.
- Connect audio/speaker circuits for commercial audio distribution.
- Install in power-limited controls circuits in building and low-voltage control systems.
Belden™ and all associated trademarks are the property of their respective owners.
Especificaciones
| Attribute | Value |
|---|---|
| Number of Conductors | 2 |
| Conductor size | 14 AWG |
| Conductor stranding | 42x30 |
| Conductor Material | BC - Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nom. insulation thickness | 0.020 in (0.51 mm) |
| Nom. insulation diameter | 0.115 in (2.92 mm) |
| Insulation color code | Black, White |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nom. jacket thickness | 0.018 in (0.46 mm) |
| Overall cable diameter (nominal) | 0.266 in (6.76 mm) |
| Nom. conductor DCR | 2.42 Ohm/1000ft |
| Nom. capacitance cond-to-cond | 29 pF/ft (95 pF/m) |
| Nom. inductance | 0.17 µH/ft (0.56 µH/m) |
| Max. current | 25 Amps per Conductor @ 30°C |
| UL temperature | 75°C |
| Operating temperature | -20°C to +75°C |
| Bend radius (stationary min.) | 2.7 in (69 mm) |
| Bend radius (installation min.) | 2.7 in (69 mm) |
| Max Pull Tension | 106.6 lbs (48.35 kg) |
| Bulk cable weight | 39 lbs/1000ft |
| NEC / UL compliance | Article 725, CL3 |
| Flammability / reaction to fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR compliance | CPR Euroclass: Eca |
| European directive compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK regulation compliance | UKCA Mark |
| APAC compliance | China RoHS II (GB/T 26572-2011) |
| Priced Per | FT |
