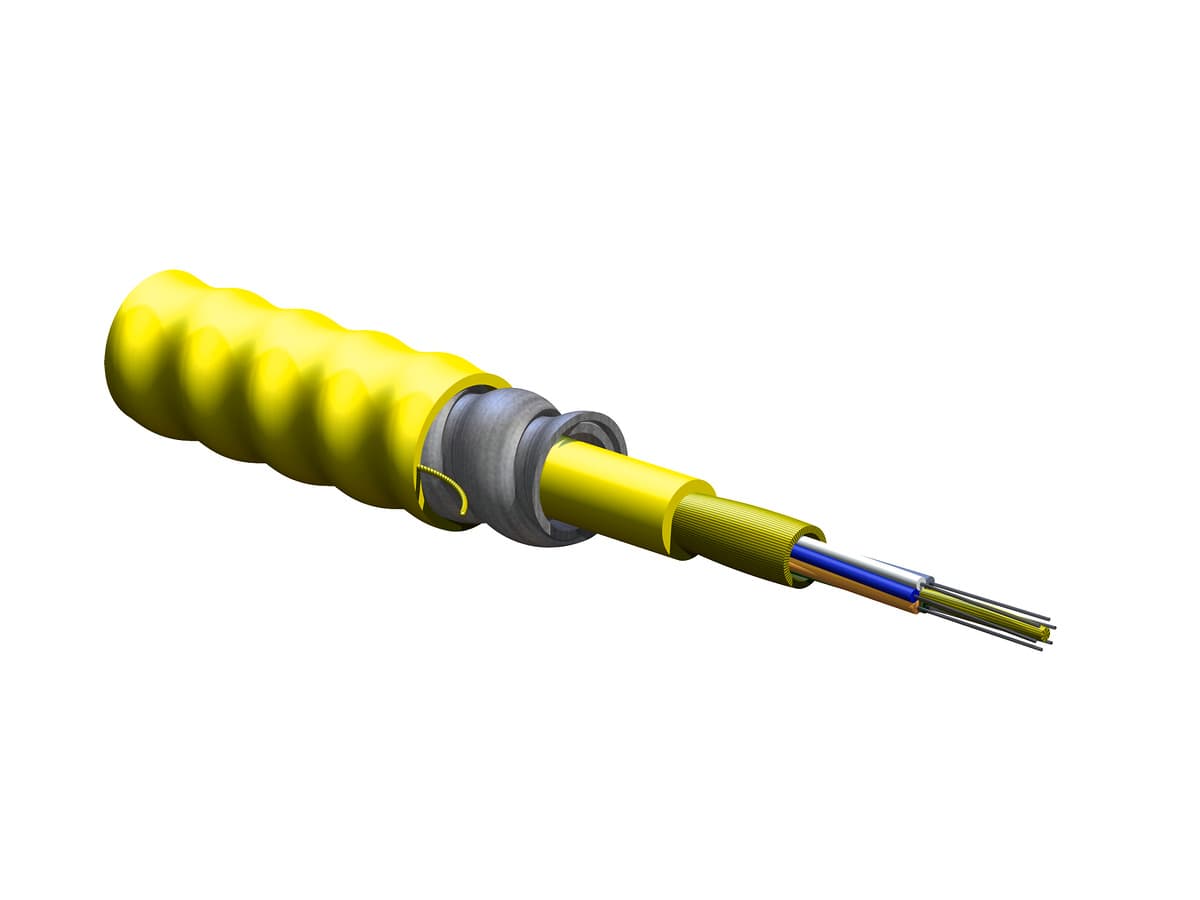

Corning 006E88-31131-A3 — 6-F 8.3/125 OS2 TB Plenum Interlocking Armor MIC 0.65/0.65/0.50 dB/km

Corning 006E88-31131-A3 — 6-F 8.3/125 OS2 TB Plenum Interlocking Armor MIC 0.65/0.65/0.50 dB/km

This fiber optic cable is designed for high-performance indoor applications. It features a tight-buffered construction with an interlocking armor for enhanced durability. The cable supports a 6-fiber count of single-mode OS2 fiber and has a flame rating of Plenum (OFCP), making it ideal for use in plenum spaces and riser environments. With a maximum attenuation of 0.4 dB/km at 1310 nm, 1383 nm, and 1550 nm, it ensures excellent signal integrity over longer distances. The interlocking armor provides additional protection, making it suitable for both general-purpose horizontal and plenum installations.

General Specifications

• Product Number: 006E88-31131-A3

• Cable Type: Tight-Buffered

• Environment: Indoor

• Product Type: Interlocking Armor

• Fiber Category: Single-mode (OS2)

• Flame Rating: Plenum (OFCP)

• Application: General purpose, Horizontal, Plenum, Riser

• Cable Geometry: Round

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: National Electrical Code® (NEC®) OFCP, NFPA 262, CSA FT-6

• Design and Test Criteria: ICEA S-83-596

Environmental Conditions

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)

• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F)

• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Central Element: Yarn

• Fiber Count: 6

• Number of Ripcords: 2

• Outer Jacket Color: Yellow

• Outer Jacket Material: Flame-retardant

• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members

• Inner Jacket Material: Flame-retardant

• Flame Rating: Plenum (OFCP)

Mechanical Specifications

• Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)

• Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)

• Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)

• Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)

• Min. Bend Radius Installation: 170 mm (6.69 in)

• Min. Bend Radius Operation: 113 mm (4.45 in)

• Nominal Inner Cable Diameter: 5.2 mm (0.2 in)

• Nominal Outer Diameter: 11.3 mm (0.44 in)

Optical Characteristics

• Fiber Code: E

• Performance Option Code: 31

• Fiber Category: OS2

• Fiber Type: Single-mode (OS2) / 250 µm

• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km

• Wavelengths: 1310 nm / 1383 nm / 1550 nm

• Fiber Compliance: ITU-T G.652.D

Dimensions

• Cable Weight: 103 kg/km (69.21 lb/1000 ft)
