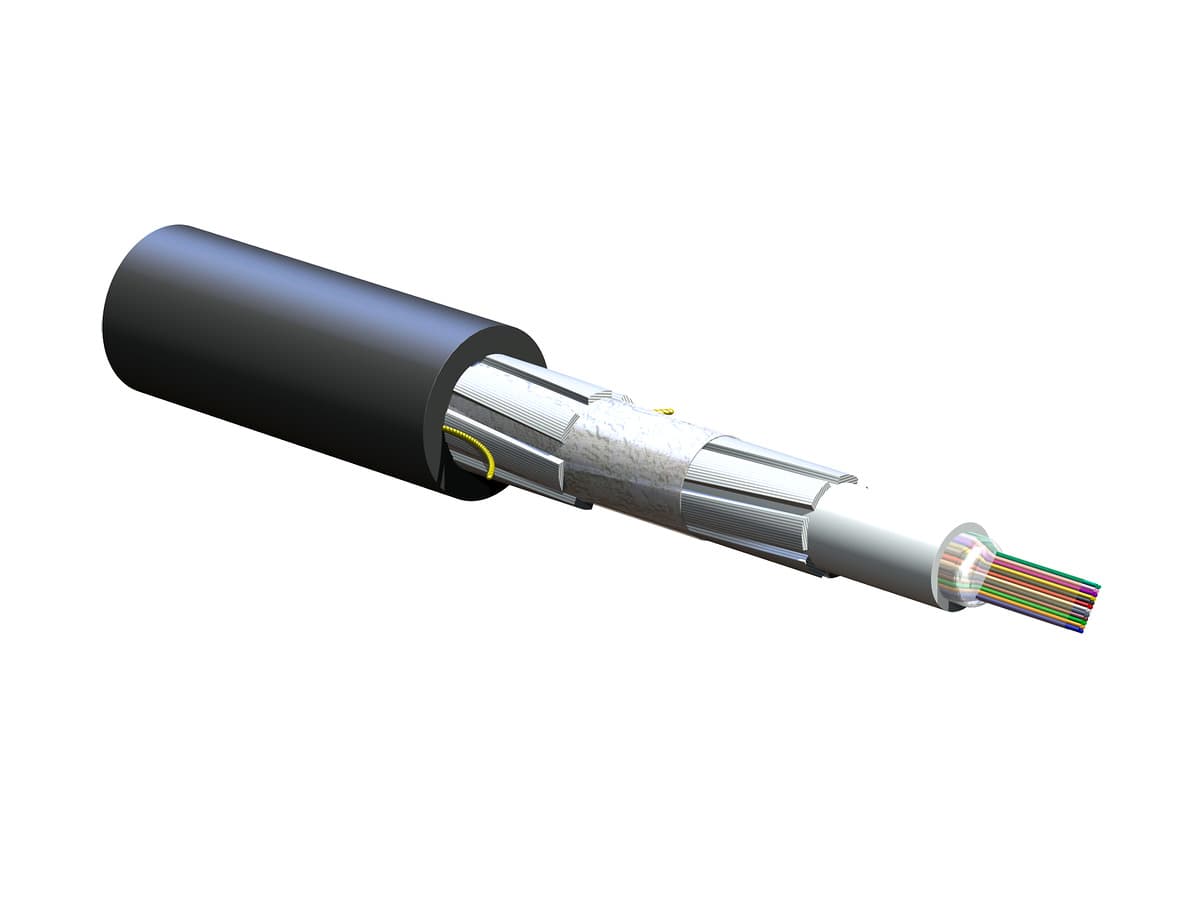

Corning 024ZCF-14101D20 – 24 Fiber OS2 Singlemode Fiber Optic Cable, Indoor/Outdoor, Black

024ECF-14101-20 – Indoor/Outdoor Ribbon Dielectric Fiber Optic Cable

The 024ECF-14101-20 is a 24-fiber single-mode (OS2) ribbon dielectric cable designed for indoor/outdoor use in a variety of applications including general purpose, horizontal, duct, direct buried, riser, and aerial installations. It features a flame-retardant, UV-resistant black outer jacket with a riser (OFNR) flame rating and compliance to NEC® OFNR and CSA FT-4 standards. The cable has a round geometry with two ribbons per tube, each containing 12 fibers, and uses dielectric strength members for tensile performance. It operates in temperatures from -40 °C to 70 °C and offers a minimum bend radius of 180 mm during installation and 120 mm in operation. Designed to ITU-T G.652.D compliance, it provides low attenuation across 1310 nm, 1383 nm, and 1550 nm wavelengths.

Cable Type: Ribbon

Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: Single-mode (OS2)
Flame Rating: Riser (OFNR)
Application: General purpose, Horizontal, Duct, Direct Buried, Riser, Aerial
Cable Geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: National Electrical Code® (NEC®) OFNR, CSA FT-4

• Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions:

• Installation Temperature Range: -10 °C to 60 °C (14 °F to 140 °F)

• Operation Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

• Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design:

• Buffer Tube Color: Natural

• Fiber Count: 24

• Buffer Tube Diameter: 56 mm (2.2 in)

• Number of Ripcords: 2

• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua

• Outer Jacket Color: Black

• Outer Jacket Material: Flame-Retardant, UV-Resistant

• Tensile Strength Elements and/or Armoring – Layer 1: Dielectric strength members

• Tensile Strength Elements and/or Armoring – Layer 2: Dielectric strength members

• Tape: Water-swellable

• Ribbons per Tube: 2

• Fibers per Ribbon: 12

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 600 N (134.89 lbf)

• Max. Tensile Strength, Short-Term: 600 N (134.89 lbf)

• Min. Bend Radius Installation: 180 mm (7.09 in)

• Min. Bend Radius Operation: 120 mm (4.72 in)

• Nominal Outer Diameter: 12 mm (0.47 in)

Optical Characteristics:

• Fiber Code: E

• Performance Option Code: 01

• Fiber Category: OS2

• Fiber Type: Single-mode (OS2) / 250 µm

• Fiber Name: Single-mode (OS2)

• Maximum Attenuation: 0.4 dB/km (1310 nm), 0.4 dB/km (1383 nm), 0.3 dB/km (1550 nm)

• Wavelengths: 1310 nm / 1383 nm / 1550 nm

• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 141 kg/km (94.75 lb/1000 ft)
