1/0 TELCOFLEX® L2 KS-24194 Unbraided Cable

Enter the desired length above. Sold and priced per foot. Cut to length.

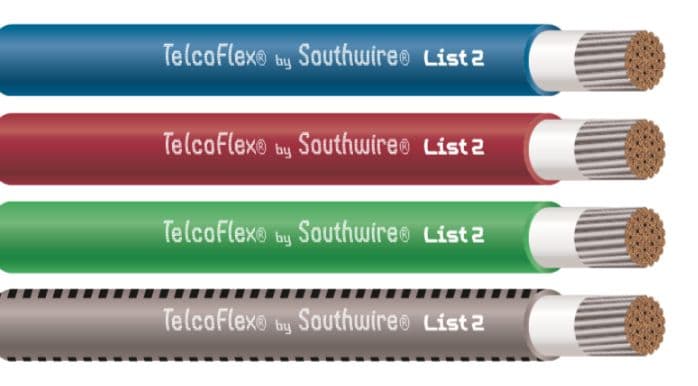

1/0 TELCOFLEX® L2 KS-24194 Telecom Power Wire and Cable. Built with a rope-bunched tinned copper conductor, Mylar tape separator, and limited smoke, non-halogenated insulation. Insulation is rated 105°C dry and 60°C wet.

Technical Specs

Product	1/0 TELCOFLEX® L2 KS-24194 Telecom Power Wire and Cable
Conductor	Rope-bunched tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated, 105°C dry, 60°C wet
Standards & Listings	ASTM B-33 and B-172 Class I tinned copper; UL 44 Type RHH, FT4-ST1, VW-1, 600 volts DC or AC; KS-24194 List 2; UL 2731 Telecommunications Central Office Power Cable; ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems; Telecordia GR-347-CORE; CSA AWM IB 105°C 600V. FT4-ST1; Lead-Free, Silicone-Free, RoHS Complaint; IEC including 60674 and 60332; REACH - European Community Regulation

Applications

• Designed for central office installations where telecommunications power wiring is required.
• Used in CATV head end environments to support power distribution needs.
• Installed in data center settings for telecom power cable runs.
• Applied in cell tower installations where telecom power wiring is installed.

Cable Print

SIZES 1/0 AWG THROUGH 750 KCMIL: SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® II/KS24194™ L2 NON-HAL (UL) E30117 SIZE (AWG OR KCMIL) 600 VOLTS RHH ST1 FT4 FOR CT USE OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332.

Shipping & Availability

Sold and priced per foot. Cut to length.
