1/0 TELCOFLEX® L3 KS-24194 with Saturated Braid

SWTF3-1-0
$4.49
+

Minimum quantity for "1/0 TELCOFLEX® L3 KS-24194 with Saturated Braid" is 25.

# of Conductors1 Conductor Gauge SizeAWG 1/0 Conductor TypeStranded Tinned Copper

Enter the desired length above. Sold and priced per foot. Cut to length.

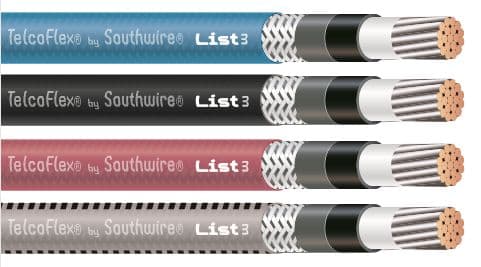

1/0 TELCOFLEX® L3 KS-24194 Telecom Power Wire and Cable.

Construction:
Conductor: Class B Tinned Copper
Separator: Mylar tape
Insulation: Limited smoke, non-halogenated with an overall flame retardant saturated braid, 105°C Dry, 60°C Wet

Applications:
For use in Central Office, CATV Head End, Data Center and Cell tower applications.

Specifications:
ASTM B-8 and B-33 Class B tinned copper
UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
KS-24194 List 3
UL 2731 Telecommunications Central Office Power Cable
ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telecordia GR-347-CORE
CSA AWM IB 105°C 600V. FT4-ST1
Lead-Free, Silicone-Free, RoHS Complaint
IEC including 60674 and 60332
REACH - European Community Regulation

Print Legend:
SIZES 1/0 AWG THROUGH 750 KCMIL: SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® III/KS24194™ L3 NON-HAL (UL) E30117 SIZE (AWG OR KCMIL) 600 VOLTS RHH ST1 FT4 FOR CT USE OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332

Technical Details
SKU or PN
:
SWTF3-1-0
# of Conductors
:
1
Conductor Gauge Size
:
AWG 1/0
Conductor Type
:
Stranded Tinned Copper
Conductor Material
:
Tinned Copper
Strand Count
:
19
Temperature
:
105°C
O.D. (Inches Nom.)
:
0.606
Amps*
:
150
Voltage
:
600V
Weight /LBS per 1000FT:
461
Item Type
:
Central Office TELCOFLEX® III
*:
* Ampacities are based on Table 310.15 (B)(16) of the NEC
**:
All data and dimensions are nominal and subject to industry standards and may vary according to plant of manufacture.
***:
Data is provided for informational purposes and does not create a binding obligation nor liability to the seller. Data can change without notice. ® All Rights Reserved Ramcorp Technologies LLC.

Technical Details: (TelcoFlex3.pdf, 2,440 Kb) [Download]
