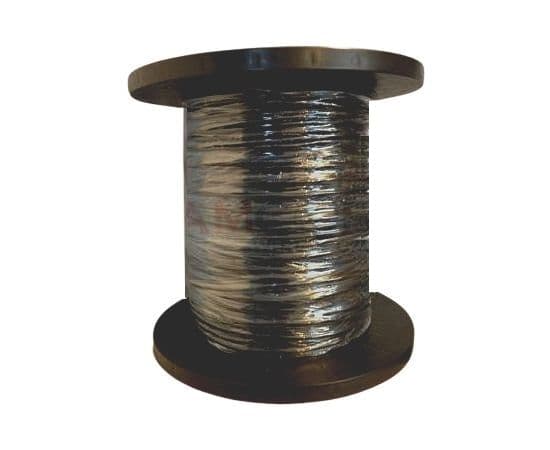

10/5 Tray Cable XLP-CPE Type TC 600V, Priced per Foot

XLPCPE-TC-10/5
Contact us for a price

Minimum quantity for "10/5 Tray Cable XLP-CPE Type TC 600V, Priced per Foot" is 100.

# of Conductors5 Conductor Gauge Size10 Conductor TypeStranded Bare Copper Insulation MaterialXLP (Cross Linked Polyethylene) Jacket MaterialCPE Approvals(UL) Type TC-ER RoHs Direct Burial

10/5 Stranded Unshielded XLP-CPE Tray Cable

  • 5 Conductors
  • AWG 10/Stranded

  • 600 Volts
    XHHW-2
    90°C Dry
    (UL) Type TC ER
    Direct Burial

    Applications:

    Suitable for Class 1, Division 2 hazardous locations.
    Installation in cable trays, wireways, ducts and conduit. Approved and rated for outdoors and direct burial in wet or dry locations.
    For use in power, control, lighting, signals and other power and control applications.

Technical Details
SKU or PN
:
XLPCPE-TC-10/5
# of Conductors
:
5
Conductor Gauge Size
:
10
Conductor Type
:
Stranded Bare Copper
Conductor Material
:
Bare Copper
Strand Count
:
7 (Annealed Bare Copper per ASTM B-8)
Insulation Material
:
XLP (Cross Linked Polyethylene)
Insulation Thickness (Inches Nom.)
:
0.03
Color Code
:
Black Red Blue Orange Yellow
Shield (Y N)
:
No
Jacket Material
:
CPE
Outdoor (Y N)
:
Yes
Temperature
:
90°C
O.D. (Inches Nom.)
:
0.606
Outer Diameter (MM Nom.)
:
15.39
Voltage
:
600 Volts
Approvals
:
(UL) Type TC-ER RoHs Direct Burial
Weight /LBS per 1000FT:
403
Item Type
:
Tray Cable XLP-CPE Direct Burial
*:
* Ampacities are based on Table 310.15 (B)(16) of the NEC 2014 Edition
**:
All data and dimensions are nominal and subject to industry standards and may vary according to plant of manufacture.
***:
Data is provided for informational purposes and does not create a binding obligation nor liability to the seller. Data can change without notice. ® All Rights Reserved Ramcorp Technologies LLC.

Specifications: (XLPCPE-TC-10_5-specs.pdf, 176 Kb) [Download]
