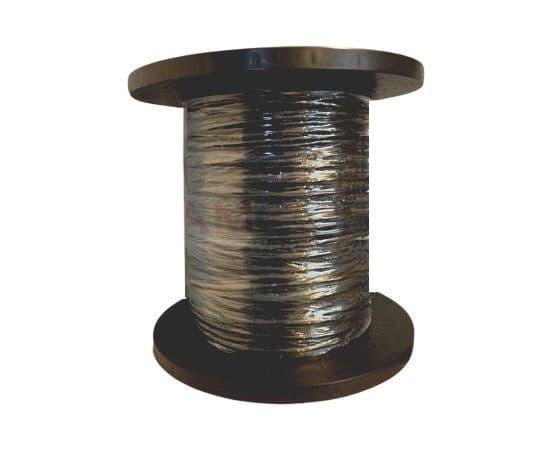

12/12 Tray Cable XLP-CPE Type TC 600V Per Foot
Description
12/12 Stranded Unshielded XLP-CPE Tray Cable features 12 conductors with AWG 12 stranded construction. It is rated 600 Volts and marked XHHW-2 with 90°C dry. The cable is listed as (UL) Type TC ER and is suitable for direct burial.
Applications
- It is suitable for Class 1, Division 2 hazardous locations.
- It supports installation in cable trays, wireways, ducts, and conduit.
- It is approved and rated for outdoors and direct burial in wet or dry locations.
- It is used in power, control, lighting, signals, and other power and control applications.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 12 |
| Conductor Gauge Size | 12 |
| Conductor Type | Stranded Bare Copper |
| Insulation Material | XLP (Cross Linked Polyethylene) |
| Jacket Material | CPE |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 90°C |
| Voltage | 600 Volts |
| Approvals | (UL) Type TC-ER RoHs Direct Burial |
| O.D. (Inches Nom.) | 0.751 |
| Color Code | Black Red Blue Orange Yellow Brown Red/Black Blue/Black Orange/Black Yellow/Black Brown/Black Black/Red |
| Item Type | Tray Cable XLP-CPE Direct Burial |
| Weight /LBS per 1000FT | 602 |
| Strand Count | 7 (Annealed Bare Copper per ASTM B-8) |
| Outdoor (Y N) | Yes |
| Insulation Thickness (Inches Nom.) | 0.03 |
| Outer Diameter (MM Nom.) | 19.08 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
