12/19 Tray Cable XLP-CPE Type TC 600V Priced per Foot
SKU:XLPCPE-TC-12/19
$6.71/ each
● In stock
Description

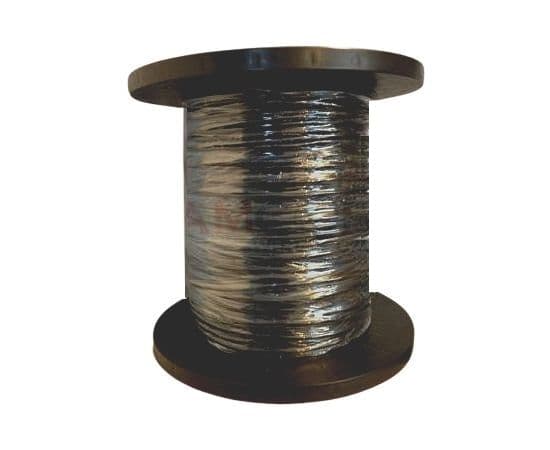

12/19 Stranded Unshielded XLP-CPE Tray Cable with 19 conductors and AWG 12 stranded construction. Rated 600 Volts and marked XHHW-2, 90°C Dry, and (UL) Type TC ER. Listed for direct burial.
Applications
- Suitable for Class 1, Division 2 hazardous locations.
- Used for installation in cable trays, wireways, ducts, and conduit.
- Rated for outdoors and direct burial in wet or dry locations.
- Intended for power, control, lighting, signals, and other power and control applications.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 19 |
| Conductor Gauge Size | 12 |
| Conductor Type | Stranded Bare Copper |
| Insulation Material | XLP (Cross Linked Polyethylene) |
| Jacket Material | CPE |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 90°C |
| Voltage | 600 Volts |
| Approvals | (UL) Type TC-ER RoHs Direct Burial |
| Color Code | ICEA Method 1 - Table E-2 |
| Item Type | Tray Cable XLP-CPE Direct Burial |
| Weight /LBS per 1000FT | 958 |
| Strand Count | 7 (Annealed Bare Copper per ASTM B-8) |
| Outdoor (Y N) | Yes |
| Insulation Thickness (Inches Nom.) | 0.03 |
