12/4 PVC Cable 12 Gauge 4 Conductors Riser Rated

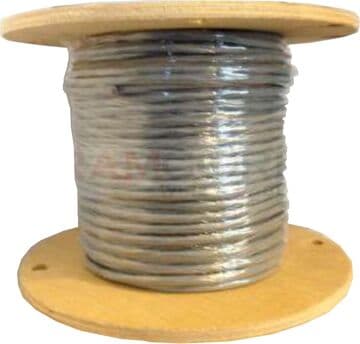

The 12/4 PVC cable is a 4-conductor, 12 AWG stranded bare copper cable in a gray PVC jacket, rated CL3R for riser installations. Designed for low-voltage control, speaker, and security applications, this cable features color-coded conductors (black, red, white, green) for easy identification and is manufactured in the USA. Available in 500 ft and 1000 ft spools from Ramcorp Wire & Cable.

12/4 PVC Cable Key Features

• CL3R riser rated for in-wall and vertical runs in commercial buildings
• 12 AWG stranded bare copper conductors for reliable signal and power delivery
• 4-conductor design with black/red/white/green color coding
• PVC insulation and PVC jacket rated to 75°C
• 300V power-limited voltage rating
• Unshielded construction for cost-effective installations
• 0.469" nominal outer diameter
• RoHS compliant — Made in the USA

12/4 PVC Cable Applications

• Commercial and residential security system wiring
• Access control and card reader installations
• Speaker wiring for distributed audio systems
• CCTV camera power connections
• Low-voltage control and signaling circuits
• Fire alarm and notification appliance circuits (power limited)
• Building automation and BMS control wiring
• Intercom and paging system installations

12/4 PVC Cable Available Lengths

Select your desired length from the available options when ordering. Need a different length? Contact us for a custom quote.

Frequently Asked Questions

What is 12/4 PVC cable used for?
12/4 PVC cable is commonly used for low-voltage security systems, access control, speaker wiring, CCTV power connections, and general control wiring in commercial and residential buildings. The CL3R riser rating allows installation in vertical shafts and risers between floors.

Is 12/4 PVC cable riser rated?
Yes. This cable carries a CL3R (Class 3 Riser) rating, which means it meets NEC fire-resistance requirements for vertical runs through risers and shafts. It is not plenum rated — for plenum spaces, a CL3P-rated cable is required.

What is the temperature rating of 12/4 PVC cable?
This cable is rated for 75°C continuous operating temperature, which is standard for PVC-insulated low-voltage cables used in building wiring applications.

Can I buy 12/4 PVC cable in custom lengths?
Yes! Select your desired length from the available options. If you need a length that isn’t listed, contact us and we’ll get you a custom quote.

What do the conductor colors mean in 12/4 cable?
The four conductors are color-coded black, red, white, and green. In typical installations, green is used for ground, white for neutral or common, and black and red for signal or power circuits. Always follow local electrical codes for conductor usage.

All data and dimensions are nominal and subject to industry standards. ® All Rights Reserved Ramcorp Technologies LLC.
