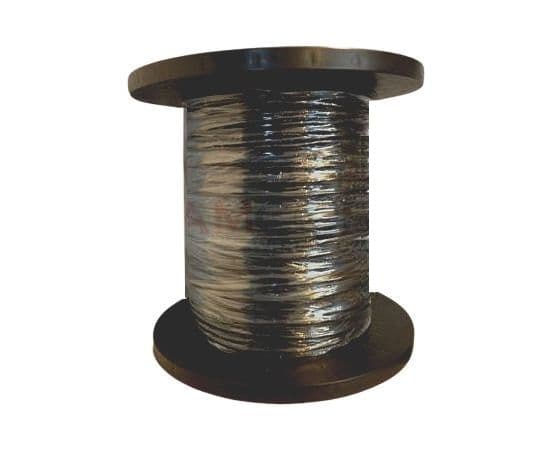

12/5 Tray Cable XLP-CPE Type TC 600V Per Foot
Description
12/5 Stranded Unshielded XLP-CPE Tray Cable with 5 conductors and AWG 12 stranded construction. Rated 600 Volts, marked XHHW-2, and 90°C Dry. Listed as (UL) Type TC ER and noted for direct burial.
Applications
- Use in Class 1, Division 2 hazardous locations.
- Install in cable trays, wireways, ducts, and conduit.
- Approved and rated for outdoors and direct burial in wet or dry locations.
- Support power, control, lighting, signals, and other power and control applications.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 5 |
| Conductor Gauge Size | 12 |
| Conductor Type | Stranded Bare Copper |
| Insulation Material | XLP (Cross Linked Polyethylene) |
| Jacket Material | CPE |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 90°C |
| Voltage | 600 Volts |
| Approvals | (UL) Type TC-ER RoHs Direct Burial |
| O.D. (Inches Nom.) | 0.505 |
| Color Code | Black Red Blue Orange Yellow |
| Item Type | Tray Cable XLP-CPE Direct Burial |
| Weight /LBS per 1000FT | 262 |
| Strand Count | 7 (Annealed Bare Copper per ASTM B-8) |
| Outdoor (Y N) | Yes |
| Insulation Thickness (Inches Nom.) | 0.03 |
| Outer Diameter (MM Nom.) | 12.83 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
