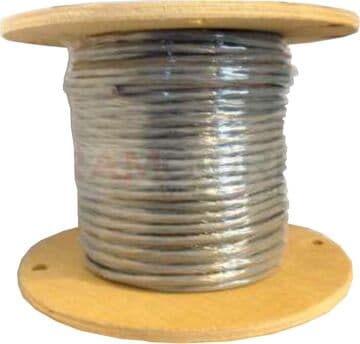

14/2 PVC Cable Shielded 14 Gauge 2 Conductors Riser Rated

This 14/2 Shielded PVC Cable is a 14 AWG, 2-conductor shielded cable rated CL3R for riser applications. Built with stranded bare copper conductors and an overall foil shield with drain wire, this cable delivers reliable signal integrity for security, alarm, audio, and control installations. Available in 500 ft and 1000 ft spools at Ramcorp Wire & Cable.

14/2 Shielded PVC Cable Key Features

• CL3R riser rated for vertical runs between floors
• Overall foil shield with drain wire for EMI/RFI protection
• 14 AWG stranded bare copper conductors (19 strand)
• 300V power-limited voltage rating
• 75°C temperature rating
• Gray PVC jacket for durability and flame retardance
• Color-coded conductors (black/red) for easy identification
• Made in the USA

14/2 Shielded PVC Cable Applications

• Security and burglar alarm systems
• Access control and card reader systems
• CCTV camera power and signal runs
• Intercom and PA systems
• Speaker and commercial audio wiring
• Control wiring and building automation
• Commercial riser installations requiring CL3R-rated cable

14/2 Shielded PVC Cable Available Lengths

Select your desired spool length from the available options when ordering.

Frequently Asked Questions

What is 14/2 shielded PVC cable used for?
This 14/2 shielded PVC cable is commonly used for security alarm systems, access control, CCTV camera wiring, intercom systems, speaker installations, and control wiring in commercial and residential buildings.

Is this cable riser rated?
Yes, this cable carries a CL3R listing, making it approved for riser applications and vertical runs between floors in commercial buildings.

What type of shielding does this cable have?
This cable features an overall foil shield with a drain wire, providing effective protection against electromagnetic interference (EMI) and radio frequency interference (RFI).

Can I buy 14/2 shielded PVC cable by the foot?
Yes! Select your desired length from the available options. If you need a length that isn’t listed, contact us and we’ll get you a custom quote.

Is this cable made in the USA?
Yes, this 14/2 shielded PVC cable is manufactured in the USA.
