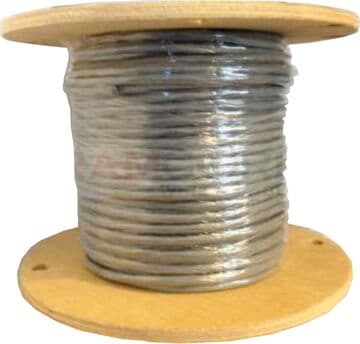

14/4 PVC Cable, 14 Gauge, 4 Conductors

11421
$366.85
+
# of Conductors4 Conductors Conductor Gauge Size14 AWG Conductor TypeStranded Insulation MaterialPVC Jacket MaterialPVC ApprovalsCL3R RoHs

Our 14 Gauge, 4 Conductor PVC Cable is available in multiple lengths and unsually ships via standard ground shipping.
We can ship this cable to your job site.

  • PVC Cable 14/4
  • 4 Conductors
  • 14 Gauge Stranded Copper Conductors
  • Color coded wires inside
  • Type CL3R
  • Gray PVC Jacket
  • Made in the USA
  • On a Spool

Applications:

  • Security
  • Control
  • Speakers
  • Audio
  • Access Control
  • Card Access
  • CCTV Camera Power
  • Commercial Grade Installations where Riser Rated cable is required.

Normally, all 14/4 PVC Cable lengths ship within 24 hours, not including weekends and holidays.

Technical Details
SKU or PN
:
11421
# of Conductors
:
4 Conductors
Conductor Gauge Size
:
14 AWG
Conductor Type
:
Stranded
Conductor Material
:
Bare Copper
Strand Count
:
19
Insulation Material
:
PVC
Color Code
:
Black/Red/White/Green
Shield (Y N)
:
No
Jacket Material
:
PVC
Temperature
:
75°C
O.D. (Inches Nom.)
:
0.277
Voltage
:
300 Volts (Power Limited)
Approvals
:
CL3R RoHs
Weight /LBS per 1000FT:
74
Item Type
:
Standard PVC Cable
**:
All data and dimensions are nominal and subject to industry standards and may vary according to plant of manufacture.
***:
Data is provided for informational purposes and does not create a binding obligation nor liability to the seller. Data can change without notice. ® All Rights Reserved Ramcorp Technologies LLC.

Specifications: (11421-specs.pdf, 223 Kb) [Download]
