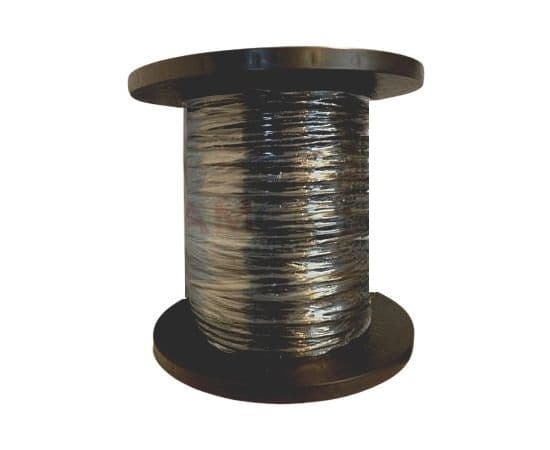

16/12 Pairs XLP CPE Ind & Overall Shielded Instrumentation Cable 90C 600V
Description
16 AWG 12 pairs individual & overall shielded pairs instrumentation cable is a 12-pair instrumentation cable with individual and overall shielded pairs. It is rated 600 Volts and 90°C dry. This cable is (UL) Type TC-ER and is listed for direct burial.
Applications
- Suitable for Class 1, Division 2 hazardous locations.
- Designed to install in instrumentation, cable trays, wireways, ducts, and conduit.
- Approved and rated for outdoors, direct burial, and sunlight resistant.
- Used in power, control, lighting, signals, and other power and control applications.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 12 Pairs |
| Conductor Gauge Size | 16 |
| Conductor Type | Stranded Tinned Copper |
| Insulation Material | XLP |
| Shield Type | Individual and Overall Foil Shield with Drain wire |
| Jacket Material | CPE |
| Conductor Material | Tinned Copper |
| Shield (Y N) | Y |
| Temperature | 90°C |
| Voltage | 600 Volts |
| Approvals | (UL) Type TC ER Direct Burial |
| Color Code | Black/White #'d |
| Item Type | Instrumentation Cable SPOS TC-ER Direct Burial |
| Strand Count | 7 (Stranded Tinned Copper) |
| Outdoor (Y N) | Yes |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
