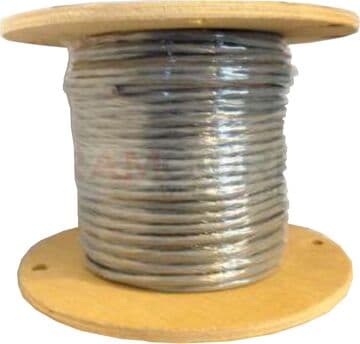

16/2 PVC Cable Shielded 16 Gauge 2 Conductors CMR
SKU:11230
$208.20
● In stock
Description
PVC Cable 16/2 Shielded is a 16 gauge, 2 conductor shielded PVC cable with 16 gauge stranded copper conductors. It features color coded wires inside, a gray PVC jacket, and Type CMR/CL3R. Made in the USA and supplied on a spool.
Applications
- Commonly used for security wiring where shielded cable is needed.
- Often used for control wiring in commercial and general installation settings.
- Used for speaker and audio connections.
- Frequently installed in access control and card access systems.
- Used for CCTV camera power runs.
- Meets commercial grade installations where riser rated cable is required.
Shipping & Availability
Available in multiple lengths and usually ships via standard ground shipping. We can ship this cable to your job site. All 16/2 Shielded PVC Cable lengths normally ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 2 Conductors |
| Conductor Gauge Size | 16 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Shield Type | Overall Foil Shield and Drain Wire |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | Yes |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.189 |
| Color Code | Black/Red |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 33 |
| Strand Count | 19 |
