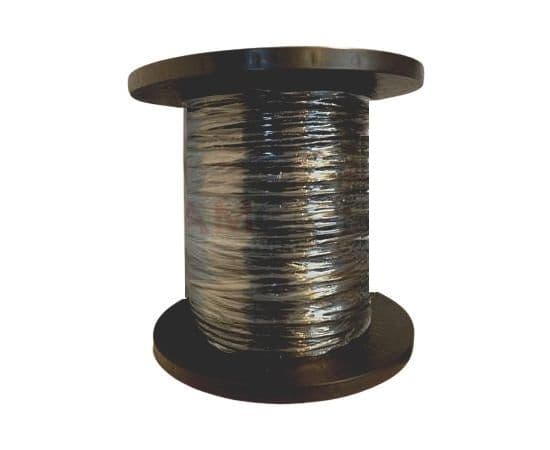

16/4 Pairs XLPE CPE TNC Overall Shield Instrumentation Cable 90C 600V
Description
16 AWG 4 pairs stranded TNC shielded instrumentation cable features 4 pairs and an overall shield. It is rated 600 Volts and 90°C Dry and is listed as (UL) Type TC-ER. This cable is specified for direct burial.
Applications
- Use in Class 1, Division 2 hazardous locations.
- Install in instrumentation, cable trays, wireways, ducts, and conduit.
- Approved and rated for outdoors, direct burial, and sunlight resistant.
- Apply in power, control, lighting, signals, and other power and control applications.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 4 Pairs |
| Conductor Gauge Size | 16 |
| Conductor Type | Stranded Tinned Copper |
| Insulation Material | XLP |
| Shield Type | Overall Aluminum Foil & Drain Wire |
| Jacket Material | CPE |
| Conductor Material | Tinned Copper |
| Shield (Y N) | Y |
| Temperature | 90°C |
| Voltage | 600 Volts |
| Approvals | (UL) Type TC ER Direct Burial |
| Color Code | Black/White #'d |
| Item Type | Instrumentation Cable Shielded Pair TC-ER Direct Burial |
| Strand Count | 7 (Stranded Tinned Copper) |
| Outdoor (Y N) | Yes |
