16/4 PVC Cable 16 Gauge 4 Conductors CMR
SKU:11431
$295.15
● In stock
Description

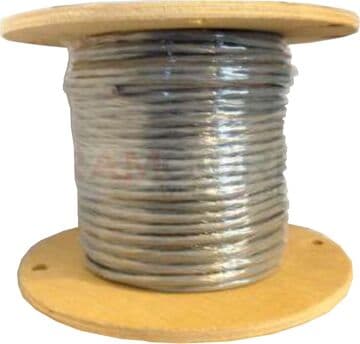

16 gauge 4 conductor PVC cable (16/4) with 16 gauge stranded copper conductors and a gray PVC jacket. This cable is Type CMR/CL3R, comes on a spool, and features color coded wires inside. Made in the USA.
Applications
- Commonly used for security wiring where multiple conductors are needed in a single cable run.
- Supports control applications that require organized, color coded internal wires for easier identification.
- Suitable for speaker and audio installations that use multi-conductor cable.
- Used in access control and card access systems for dependable multi-conductor connections.
- Can be used for CCTV camera power wiring where a 4-conductor cable is appropriate.
- Fits commercial grade installations where riser rated cable is required.
Shipping & Availability
Ships via standard ground shipping. We can ship this cable to your job site. All 16/4 PVC Cable lengths normally ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 4 Conductors |
| Conductor Gauge Size | 16 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.217 |
| Color Code | Black/Red/White/Green |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 52 |
| Strand Count | 19 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
