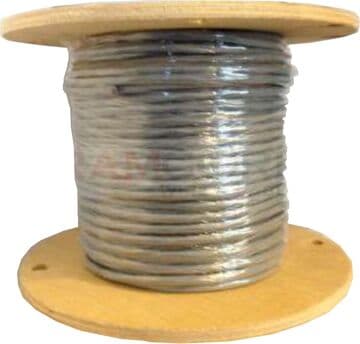

18/3 PVC Cable Shielded 18 Gauge 3 Conductors CMR
SKU:11350
$194.70
● In stock
Description
18 gauge 3 conductor shielded PVC cable (18/3) is a Type CMR/CL3R cable with a gray PVC jacket and color coded wires inside. It features 18 gauge stranded copper conductors, comes on a spool, and is made in the USA. Available in multiple lengths.
Applications
- Shielded cable is commonly used for security wiring.
- Control wiring in commercial and general installation settings is suitable for this cable.
- Speaker and audio connections that call for a shielded multi-conductor cable work well with this cable.
- Access control and card access systems are often installed with this cable.
- CCTV camera power runs are used in security installations.
- Commercial grade installations where riser rated cable is required are appropriate for this cable.
Shipping & Availability
Usually ships via standard ground shipping, and we can ship this cable to your job site. Normally, all 18/3 Shielded PVC Cable lengths ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 3 Conductors |
| Conductor Gauge Size | 18 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Shield Type | Overall Foil Shield and Drain Wire |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | Yes |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.176 |
| Color Code | Black/Red/White |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 31 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
