18/8 PVC Cable 18 Gauge 8 Conductors CMR
SKU:11851
$369.20
● In stock
Description

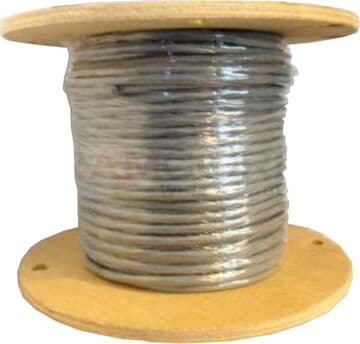

PVC Cable 18/8 is an 18 gauge, 8 conductor cable with a gray PVC jacket. It features 18 gauge stranded copper conductors with color coded wires inside. Rating: Type CMR/CL3R. Packaging: on a spool. Made in the USA.
Applications
- This cable is used in security installations.
- It supports control wiring needs.
- Use it for speakers and audio connections.
- It is suitable for access control and card access systems.
- It can be used for CCTV Camera Power.
- It fits commercial grade installations where riser rated cable is required.
Shipping & Availability
This cable usually ships via standard ground shipping, and we can ship it to your job site. Normally, all 18/8 PVC Cable lengths ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 8 Conductors |
| Conductor Gauge Size | 18 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.249 |
| Color Code | Black/Red/White/Green/Brown/Blue/Orange/Yellow |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 60 |
| Strand Count | 7 |
