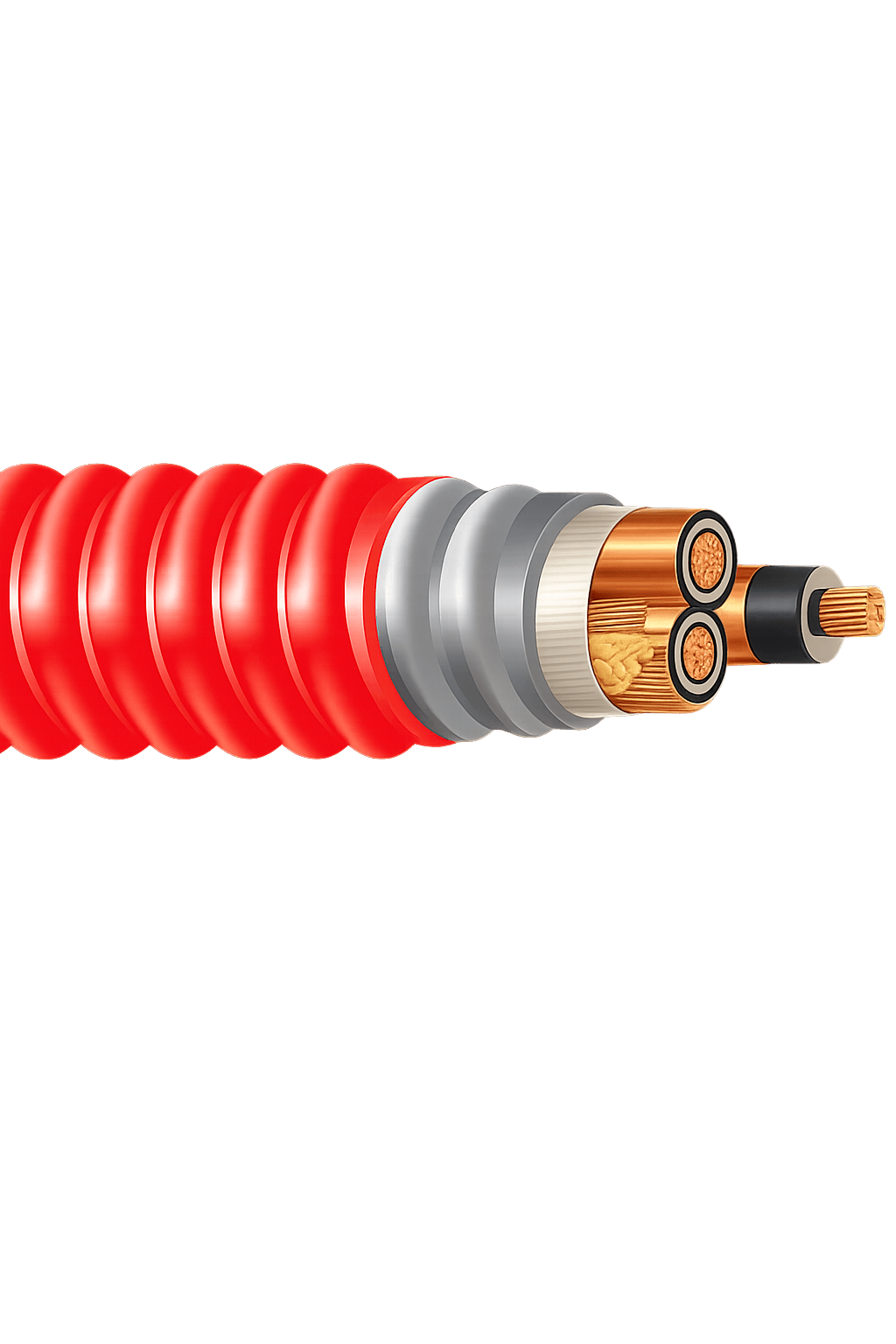

2/0 AWG 3-Conductor Armored Shielded EPR/PVC MV-105 Cable – 15 kV

This 2/0 AWG 3-conductor MV-105 power cable is designed for 15 kV medium-voltage electrical distribution in industrial, utility, and heavy-commercial applications. The cable is constructed with three stranded bare copper conductors, EPR insulation, copper tape shielding, and aluminum interlocked armor, providing a reliable solution where both electrical performance and mechanical protection are required.

The 2/0 AWG conductor size makes this cable suitable for medium-voltage feeders, transformers, switchgear, and motor circuits where space constraints, flexibility, and dependable power delivery are critical. The armored construction supports installation in underground, outdoor, conduit, or cable tray environments without additional mechanical protection.

Construction Overview

• Armor: Yes (aluminum interlocked armor)
• Conductor Count: 3 conductors
• Conductor Material: Bare copper
• Conductor Size: 2/0 AWG
• Conductor Type: Stranded
• Earth/Ground Wires: Yes
• Number of Ground Wires: 1 wire
• Insulation Material: EPR (Ethylene Propylene Rubber), MV-105 rated
• Jacket Material: PVC (Polyvinyl Chloride)
• Screen/Shield: Yes
• Shield Type: Copper tape
• Voltage Class: 15 kV
• Product Type: Armored medium-voltage power cable

Applications

• Medium-voltage distribution feeders
• Utility and substation power systems
• Transformer and switchgear connections
• Industrial power installations
• Underground and outdoor electrical runs

Disclaimer: Product specifications, dimensions, weights, and availability are provided for reference only and are subject to change without notice. Actual construction, approvals, and performance characteristics may vary by manufacturer and production run. Always verify technical requirements, code compliance, and suitability for your specific application prior to installation. Installation must be performed by qualified personnel in accordance with applicable NEC, local codes, and project specifications.
