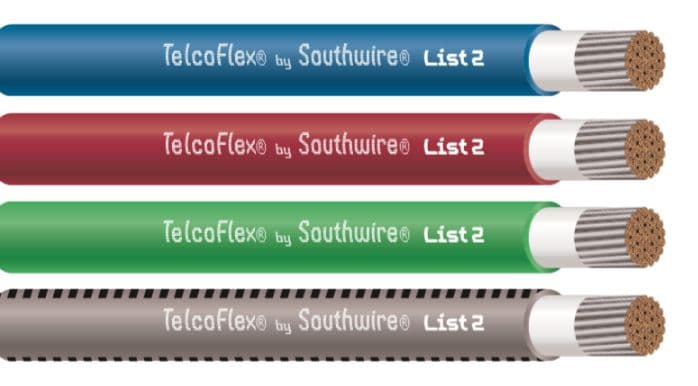

2/0 TELCOFLEX® L2 KS-24194 Unbraided Cable

2/0 TELCOFLEX® L2 KS-24194 telecom power wire and cable is sold and priced per foot and cut to length. Construction includes a rope-bunched tinned copper conductor, Mylar tape separator, and limited smoke, non-halogenated insulation rated 105°C dry and 60°C wet.

Technical Specs

Conductor	Rope-bunched tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated, 105°C dry, 60°C wet
Standards	ASTM B-33 and B-172 Class I tinned copper
Listings / Types	UL 44 Type RHH, FT4-ST1, VW-1, 600 volts DC or AC
KS	KS-24194 List 2
UL	UL 2731 Telecommunications Central Office Power Cable
ATIS	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telecordia	Telecordia GR-347-CORE
CSA	CSA AWM IB 105°C 600V. FT4-ST1
Compliance	Lead-free, silicone-free, RoHS Complaint
IEC	IEC including 60674 and 60332
REACH	REACH - European Community Regulation

Applications

• Used in central office installations where telecommunications power wiring is required.
• Supports CATV head end environments that need telecom power cable routing and distribution.
• Installed in data center settings for telecommunications power system connections.
• Suitable for cell tower applications where telecom power cabling is needed.

Cable Print

SIZES 1/0 AWG THROUGH 750 KCMIL: SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® II/KS24194™ L2 NON-HAL (UL) E30117 SIZE (AWG OR KCMIL) 600 VOLTS RHH ST1 FT4 FOR CT USE OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332.

Shipping & Availability

Enter the desired length above. Sold and priced per foot. Cut to length.
