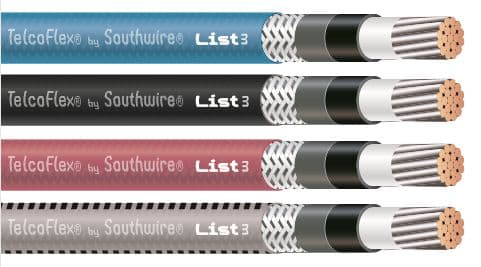

2/0 TELCOFLEX® L3 KS-24194 Saturated Braid

2/0 TELCOFLEX® L3 KS-24194 telecom power wire and cable is sold and priced per foot and cut to length. It features a Class B tinned copper conductor with a Mylar tape separator and limited smoke, non-halogenated insulation with an overall flame retardant saturated braid. Insulation is rated 105°C dry and 60°C wet.

Enter the desired length above.

Technical Specs

Size	2/0
Product name	TELCOFLEX®
List	L3
Standard	KS-24194
Conductor	Class B tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated with an overall flame retardant saturated braid, 105°C dry, 60°C wet
Specifications	ASTM B-8 and B-33 Class B tinned copper
UL	UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
KS	KS-24194 List 3
UL listing	UL 2731 Telecommunications Central Office Power Cable
ATIS	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telecordia	Telecordia GR-347-CORE
CSA	CSA AWM IB 105°C 600V, FT4-ST1
Compliance	Lead-free, silicone-free, RoHS Complaint
IEC	IEC including 60674 and 60332
REACH	REACH - European Community Regulation

Applications

• Used in central office installations where telecom power cable is required.
• Supports CATV head end environments for telecommunications power wiring needs.
• Installed in data center applications to distribute telecommunications power.
• Specified for cell tower applications where telecom power wire and cable is used.

Cable Print

SIZES 1/0 AWG THROUGH 750 KCMIL: SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® III/KS24194™ L3 NON-HAL (UL) E30117 SIZE (AWG OR KCMIL) 600 VOLTS RHH ST1 FT4 FOR CT USE OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332

Shipping & Availability

Sold and priced per foot. Cut to length.
