20/2 PVC Cable Shielded 20 Gauge 2 Conductors CMR
SKU:11260
$200.90
● In stock
Description

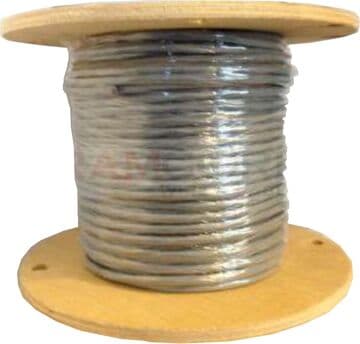

PVC Cable 20/2 Shielded is a 20 gauge, 2 conductor shielded PVC cable with 20 gauge stranded copper conductors. It is color coded inside and finished with a gray PVC jacket. This cable is Type CMR/CL3R, made in the USA, and supplied on a spool.
Applications
- It is commonly used in security and access control systems, including card access setups.
- It is suitable for control wiring where a shielded cable is needed.
- It works well for speakers and other audio connections.
- It is used for CCTV camera power connections.
- It is intended for commercial grade installations where riser rated cable is required.
Shipping & Availability
Available in multiple lengths and usually ships via standard ground shipping. We can ship this cable to your job site. Normally, all 20/2 Shielded PVC Cable lengths ship within 24 hours, excluding weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 2 Conductors |
| Conductor Gauge Size | 20 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Shield Type | Overall Foil Shield and Drain Wire |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | Yes |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.147 |
| Color Code | Black/Red |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 18 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
