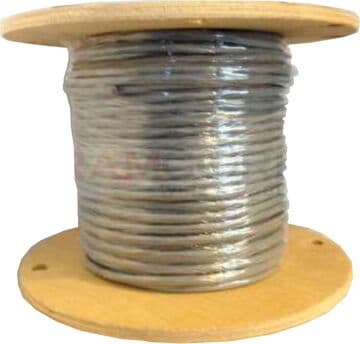

20/2 PVC Cable 20 Gauge 2 Conductors CMR
SKU:11261
$169.10
● In stock
Description
PVC Cable 20/2 is a 20 gauge, 2 conductor cable with a gray PVC jacket and color coded wires inside. It is type CMR/CL3R, comes on a spool, and is made in the USA. This cable is available in multiple lengths.
Applications
- This cable is commonly used for security wiring where 2-conductor cabling is needed.
- It supports control wiring setups in a range of installations.
- It is suitable for speaker and audio connections.
- It is used in access control and card access systems.
- It works for CCTV camera power wiring.
- It fits commercial grade installations where riser rated cable is required.
Shipping & Availability
This cable usually ships via standard ground shipping, and we can ship it to your job site. All 20/2 PVC Cable lengths normally ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 2 Conductors |
| Conductor Gauge Size | 20 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.143 |
| Color Code | Black/Red |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 14 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
Need a cut length, bulk pricing, or a spec sheet?
Our team quotes custom lengths and volume orders, usually same day.
