20/4 PVC Cable Shielded 20 Gauge 4 Conductors CMR
SKU:11460
$319.70
● In stock
Description

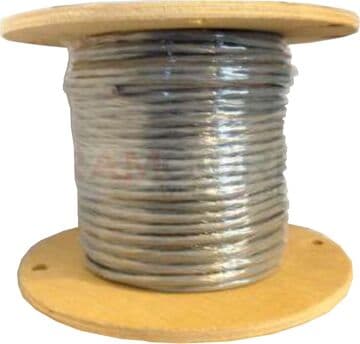

20 gauge 20/4 shielded PVC cable with a gray PVC jacket and Type CMR/CL3R rating. It features 4 conductors with 20 gauge stranded copper conductors and color coded wires inside. Made in the USA and supplied on a spool.
Applications
- Use in security installations where shielded cable is needed for connected devices and system wiring.
- Install for building and system control wiring connections.
- Run for speaker wiring and speaker connections in audio setups.
- Apply in audio wiring where shielded cable is used for signal runs.
- Wire access control for doors, readers, and related access control components.
- Support card access system wiring for card access devices and connections.
- Power CCTV cameras using CCTV camera power wiring.
- Specify for commercial grade installations where riser rated cable is required.
Shipping & Availability
Available in multiple lengths and usually ships via standard ground shipping. We can ship this cable to your job site. Normally, all 20/4 shielded PVC cable lengths ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 4 Conductors |
| Conductor Gauge Size | 20 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Shield Type | Overall Foil Shield and Drain Wire |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | Yes |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.172 |
| Color Code | Black/Red/White/Green |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 30 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
