20/4 PVC Cable 20 Gauge 4 Conductors CMR
Description

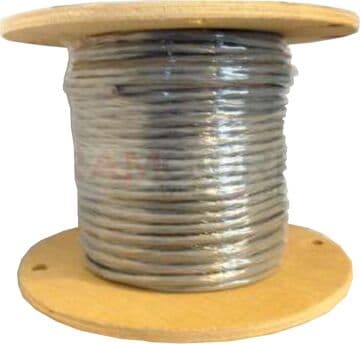

20 Gauge 4 Conductor PVC Cable (20/4) with a gray PVC jacket and Type CMR/CL3R rating. It features 20 gauge stranded copper conductors with color coded wires inside. Made in the USA and supplied on a spool.
Applications
- It is commonly used for security wiring where multiple conductors are needed for connected devices.
- Control connections are supported in installations that require reliable multi-conductor cabling.
- Speaker and audio wiring is supported in a variety of system layouts.
- Access control and card access connections are supported in commercial and building environments.
- CCTV camera power runs are supported where a 4-conductor cable is specified.
- Commercial grade installations are supported where riser rated cable is required.
Shipping & Availability
This cable usually ships via standard ground shipping, and it can be shipped to your job site. All 20/4 PVC Cable lengths normally ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 4 Conductors |
| Conductor Gauge Size | 20 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.166 |
| Color Code | Black/Red/White/Green |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 24 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
