22/10 PVC Cable 22 Gauge 10 Conductors CMR
SKU:11081
$498.30
● In stock
Description

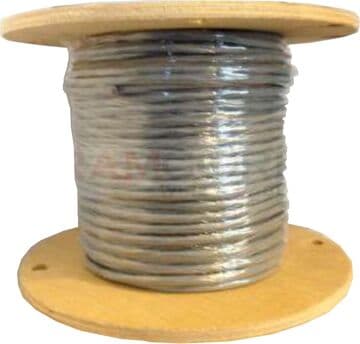

22 gauge 10 conductor PVC cable (22/10) features 22 gauge stranded copper conductors, color coded wires inside, and a gray PVC jacket. This cable is Type CMR/CL3R, made in the USA, and supplied on a spool. It is available in multiple lengths.
Applications
- Use in security installations where multiple conductors are needed for system connections.
- Install for control wiring on equipment and system control connections.
- Run as speaker wiring for audio distribution and speaker connections.
- Apply in audio system wiring for general audio connections.
- Choose for access control wiring for door and entry system connections.
- Specify for card access system wiring for card reader and access hardware connections.
- Use for CCTV camera power wiring to power CCTV cameras.
- Suitable for commercial grade installations where riser rated cable is required.
Shipping & Availability
Usually ships via standard ground shipping, and we can ship this cable to your job site. All 22/10 PVC cable lengths normally ship within 24 hours, excluding weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 10 Conductors |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.227 |
| Color Code | Black/Red/White/Green/Brown/Blue/Orange/Yellow/Purple/Gray |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 42 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
Need a cut length, bulk pricing, or a spec sheet?
Our team quotes custom lengths and volume orders, usually same day.
