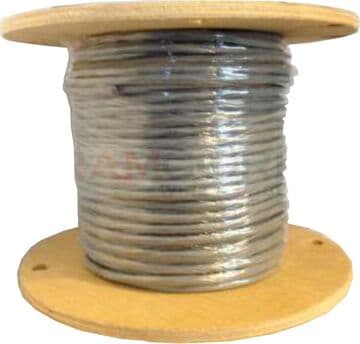

22/2 PVC Cable Shielded 22 Gauge 2 Conductors CMR
SKU:11280
$169.10
● In stock
Description
PVC Cable 22/2 Shielded is a 22 gauge, 2 conductor shielded PVC cable with a gray PVC jacket. It is Type CMR/CL3R and uses 22 gauge stranded copper conductors with color coded wires inside. Made in the USA and supplied on a spool.
Applications
- Security systems use it where shielded cable is needed for dependable signal connections.
- Control wiring runs in building and system control setups are supported.
- Speaker wiring and general audio connections are suitable uses.
- Access control and card access systems commonly use it.
- CCTV camera power connections can be supported.
- Commercial grade installations use it where riser rated cable is required.
Shipping & Availability
This cable is available in multiple lengths and usually ships via standard ground shipping. We can ship this cable to your job site. Normally, all 22/2 Shielded PVC Cable lengths ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 2 Conductors |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Shield Type | Overall Foil Shield and Drain Wire |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | Yes |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.131 |
| Color Code | Black/Red |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 14 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
Need a cut length, bulk pricing, or a spec sheet?
Our team quotes custom lengths and volume orders, usually same day.
