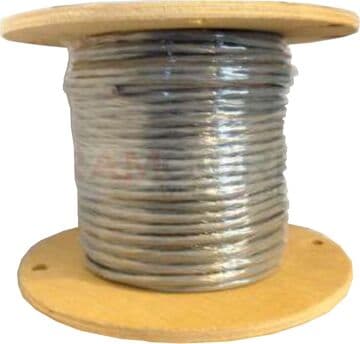

22/2 PVC Cable 22 Gauge 2 Conductors CMR
SKU:11281
● In stock
Description
22 gauge 2 conductor PVC Cable 22/2 features a gray PVC jacket with 22 gauge stranded copper conductors and color coded wires inside. This cable is Type CMR/CL3R, made in the USA, and supplied on a spool. It is available in multiple lengths and usually ships via standard ground shipping.
Applications
- Use it in security installations where a 22/2 PVC cable is needed.
- Support control wiring in commercial and general-purpose systems with this cable.
- Choose it for speaker wiring and audio connections.
- Install it for access control and card access systems.
- Apply it for CCTV camera power wiring.
- Specify it for commercial grade installations where riser rated cable is required.
Shipping & Availability
Available in multiple lengths and usually ships via standard ground shipping. We can ship this cable to your job site. Normally, all 22/2 PVC Cable lengths ship within 24 hours, not including weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 2 Conductors |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.129 |
| Color Code | Black/Red |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 10 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
Need a cut length, bulk pricing, or a spec sheet?
Our team quotes custom lengths and volume orders, usually same day.
