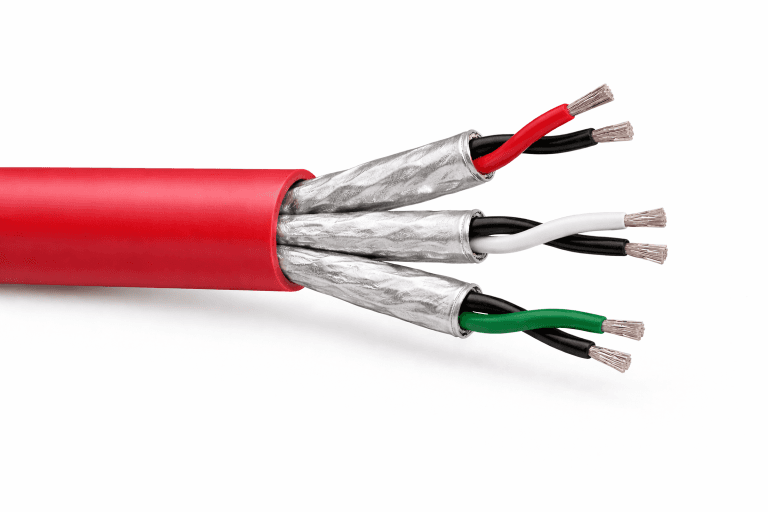

22/3 Pairs Individual Shield FEP/FEP High Temp Cable Red
SKU:4-88777-EQ
$1,754.50
● In stock
Description
22/3 Pairs Individual Shield FEP/FEP High Temperature Cable Red is a 3-pair, AWG size 22 cable with stranded tinned copper conductors, FEP insulation, and an extruded red FEP jacket. It includes an individual shield and drain wire, is rated (UL) CMP/CL2P, is compatible with Belden 88777, and is rated 200°C.
Applications
- Use in installations where high temperatures or low temperatures are required.
- Choose for environments where excellent chemical resistance is needed.
- Consider for installations where smaller diameters than standard cables are preferred to help save space.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 3 Pairs |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded |
| Insulation Material | Extruded FEP (Fluorinated Ethylene Propylene) |
| Shield Type | Individual Foil Shield & Drain Wire |
| Jacket Material | FEP - Fluorinated Ethylene Propylene |
| Conductor Material | TC - Tinned Copper |
| Shield (Y N) | Yes |
| Temperature | -80°C to 200°C |
| Voltage | 300 Volts RMS |
| Approvals | (UL) Or ETL CMP CL2P |
| O.D. (Inches Nom.) | 0.221 |
| Color Code | Black/Red Black/White Black/Green |
| Item Type | FEP/FEP Cable Equal to 88777 |
| Weight /LBS per 1000FT | 31 |
| Strand Count | 7 |
| Nominal Velocity of Propagation | 69% Nominal |
| Insulation Thickness (Inches Nom.) | 0.006 |
| Outer Diameter (MM Nom.) | 5.612 |
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
