22/3 PVC Cable 22 Gauge 3 Conductors CMR
SKU:11381
$155.60
● In stock
Description

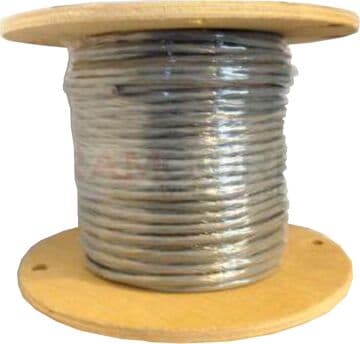

22 Gauge 3 Conductor PVC Cable 22/3 is a Type CMR/CL3R cable with a gray PVC jacket. It features 22 gauge stranded copper conductors and color coded wires inside. This cable is made in the USA and supplied on a spool.
Applications
- Supports security system wiring where a 3-conductor cable is needed for reliable connections.
- Used for control wiring in installations that require organized, color-coded conductors.
- Suitable for speaker and audio wiring runs in residential or commercial setups.
- Works well in access control and card access installations that need consistent multi-conductor cabling.
- Used for CCTV camera power connections where a 3-conductor cable is required.
- Fits commercial grade installations where riser rated cable is required.
Shipping & Availability
Available in multiple lengths and usually ships via standard ground shipping. All 22/3 PVC Cable lengths normally ship within 24 hours, not including weekends and holidays. We can ship this cable to your job site.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 3 Conductors |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.136 |
| Color Code | Black/Red/White |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 14 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
