22/8 PVC Cable 22 Gauge 8 Conductors CMR
SKU:11881
$349.10
● In stock
Description

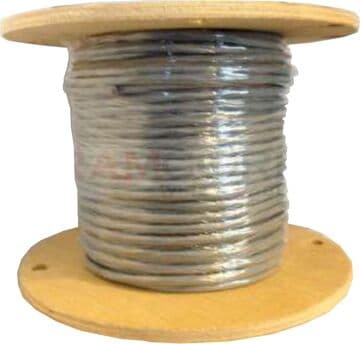

22 Gauge 8 Conductor PVC Cable 22/8 features 22 gauge stranded copper conductors in a gray PVC jacket. This cable is Type CMR/CL3R and includes color coded wires inside. Made in the USA and supplied on a spool, it is available in multiple lengths.
Applications
- Security wiring commonly uses it when multiple conductors are needed in one cable run.
- For control wiring, it supports building and system control setups.
- Speaker and other audio connections can be installed with it.
- Access control and card access wiring can use it.
- CCTV camera power connections can use it.
- Commercial grade installations can use it where riser rated cable is required.
Shipping & Availability
This cable usually ships via standard ground shipping and can be shipped to your job site.
All 22/8 PVC Cable lengths normally ship within 24 hours, excluding weekends and holidays.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 8 Conductors |
| Conductor Gauge Size | 22 AWG |
| Conductor Type | Stranded |
| Insulation Material | PVC |
| Jacket Material | PVC |
| Conductor Material | Bare Copper |
| Shield (Y N) | No |
| Temperature | 75°C |
| Voltage | 300 Volts (Power Limited) |
| Approvals | CMR CL3R RoHs |
| O.D. (Inches Nom.) | 0.193 |
| Color Code | Black/Red/White/Green/Brown/Blue/Orange/Yellow |
| Item Type | Standard PVC Cable |
| Weight /LBS per 1000FT | 32 |
| Strand Count | 7 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
