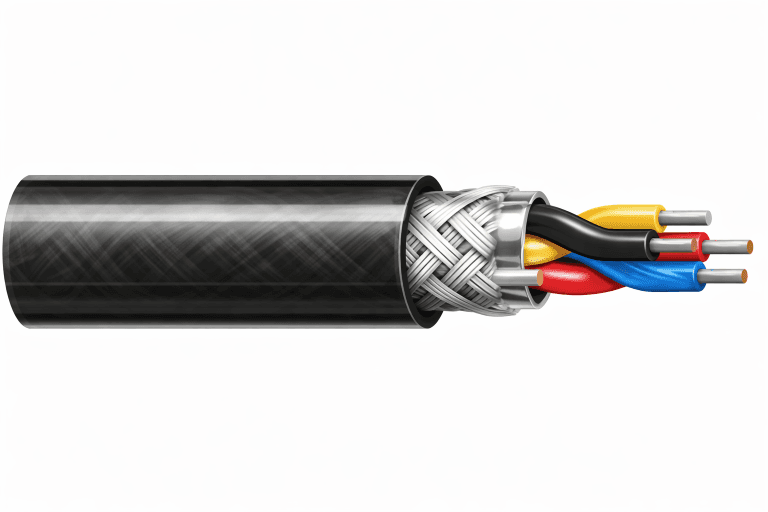

22 AWG 2-Pair FEP Plenum 200°C Shielded P.O.S. Cable

22 AWG 2-Pair FEP Plenum 200°C Shielded Cable

The RWC-FP22-2PFB is a 22 AWG, 2-pair FEP plenum cable with an overall foil and braid shield, Belden 89855 compatible. Four solid tinned copper conductors are twisted into 2 pairs and insulated with FEP. The cable is protected by an overall shield consisting of 100% aluminum foil plus a 56% tinned copper braid with polyester tape and a 22 AWG solid tinned copper drain wire. The black FEP outer jacket brings the overall diameter to 0.272 in.

Rated CMP per NEC Article 800, this cable is approved for installation in plenum air-handling spaces without conduit. The all-FEP construction handles continuous temperatures from −70°C to +200°C (UL rated 200°C) and provides inherent resistance to chemicals, oils, and UV exposure. The 100 Ohm characteristic impedance and dual foil+braid shield make it ideal for point of sale (POS), RS-485, and computer communication in demanding environments.

Technical Details

SKU or PN	RWC-FP22-2PFB
# of Pairs	2
# of Conductors	4
Conductor Gauge Size	22 AWG
Conductor Type	Solid
Conductor Material	Tinned Copper
Insulation Material	Extruded FEP (Fluorinated Ethylene Propylene)
Nom. Capacitance Cond-to-Cond	15.5 pF/ft (50.9 pF/m)
Nom. Characteristic Impedance	100 Ohm
Nom. Velocity of Propagation	70% Nom
Color Code	Red & Blue, Black & Yellow
Shield (Y/N)	Yes — Overall Foil + Braid
Shield Type	Bi-Laminate Foil (100%) + Tinned Copper Braid (56%) + Polyester Tape, 22 AWG Solid TC Drain Wire
Jacket Material	Extruded FEP (Fluorinated Ethylene Propylene)
Jacket Color	Black
Temperature	−70°C to +200°C (200°C UL)
O.D. (Inches Nom.)	0.272
Voltage	300 Volts RMS
Approvals	(UL) CMP
Weight /LBS per 1000FT	38
Item Type	FEP/FEP Cable

Key Features

• CMP plenum rated
• All-FEP construction: −70°C to +200°C operating range (UL rated 200°C)
• Dual shield: 100% foil + 56% TC braid for EMI/RFI rejection
• 100 Ohm impedance — suitable for POS and RS-485
• Oil resistant, sunlight resistant, UV resistant
• 0.272 in OD — 2 pairs (4 solid conductors)
• 300V rated, 4.8 Amps per conductor at 30°C

Common Applications

• Point of sale (POS) systems
• RS-485 applications
• Plenum air-handling spaces
• Extreme high/low temperature environments
• Computer communication
• Low voltage analog signals (4-20mA, 0-10V)
• Low voltage digital control (24V)

Cross-Reference

This cable is similar to Belden 89855. Same 22 AWG solid tinned copper conductors, FEP insulation, overall foil + 56% TC braid shield with drain wire, black FEP jacket, 100 Ohm, 300V CMP plenum rated.

All data and dimensions are nominal and subject to industry standards and may vary according to plant of manufacture.

Data is provided for informational purposes and does not create a binding obligation nor liability to the seller. Data can change without notice. All Rights Reserved Ramcorp Technologies LLC.

Belden® is a registered trademark of Belden Inc. Ramcorp Wire & Cable is not affiliated with, endorsed by, or sponsored by Belden Inc. Part numbers are used for cross-reference purposes only.
