24 AWG 6-Pair Individually Shielded Foam FEP/Fluorocopolymer Plenum 150°C Cable

24 AWG 6-Pair Individually Shielded Foam FEP/Fluorocopolymer Plenum 150°C Cable

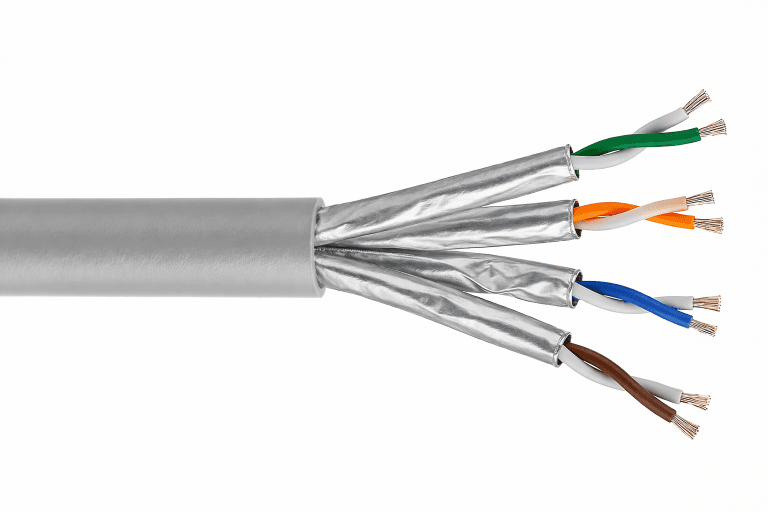

The RWC-FPK24-6PIS is a 24 AWG, 6-pair individually shielded foam FEP/Fluorocopolymer plenum cable, similar to Belden 89731. Twelve 7x32 stranded tinned copper conductors are twisted into 6 pairs and insulated with foam FEP. Each pair is individually shielded with 100% aluminum foil and a 24 AWG stranded tinned copper drain wire. The gray Fluorocopolymer outer jacket brings the overall diameter to 0.361 in (9.17 mm).

Rated CMP per NEC Article 800, this cable is approved for installation in plenum air-handling spaces without conduit. The foam FEP insulation provides low capacitance (13.5 pF/ft) and 100 Ohm characteristic impedance, ideal for RS-232/422, digital audio, and multi-channel computer communication applications. Operating temperature range is −20°C to +150°C.

Technical Details

SKU or PN	RWC-FPK24-6PIS
# of Pairs	6
# of Conductors	12
Conductor Gauge Size	24 AWG
Conductor Type	Stranded
Conductor Material	Tinned Copper
Strand Count	7 (7x32)
Insulation Material	Foam FEP (Fluorinated Ethylene Propylene)
Nom. Capacitance Cond-to-Cond	13.5 pF/ft (44.3 pF/m)
Nom. Characteristic Impedance	100 Ohm
Nom. Velocity of Propagation	76% Nom
Color Code	Western Electric Standard, Red, Green, Blue
Shield (Y/N)	Yes — Individually Shielded Pairs
Shield Type	Bi-Laminate Foil (100%) per pair, 24 AWG TC Drain Wire each pair
Jacket Material	Fluorocopolymer
Jacket Color	Gray
Temperature	−20°C to +150°C (150°C UL)
O.D. (Inches Nom.)	0.361
Outer Diameter (MM Nom.)	9.17
Voltage	300 Volts RMS
Approvals	(UL) CMP
Weight /LBS per 1000FT	62
Item Type	Foam FEP/Fluorocopolymer Cable

Key Features

• CMP plenum rated
• Foam FEP insulation with Fluorocopolymer jacket: −20°C to +150°C operating range
• Low capacitance: 13.5 pF/ft, 100 Ohm impedance for RS-232/422 and digital audio
• Individually shielded pairs: 100% foil + 24 AWG drain wire per pair
• 0.361 in OD — 6 pairs (12 conductors)
• 300V rated, 1.96 Amps per conductor at 25°C

Common Applications

• Plenum air-handling spaces
• RS-232 extended distance applications
• RS-422 applications
• Computer communication
• Digital audio
• Low voltage analog signals (4-20mA, 0-10V)
• Low voltage digital control (24V)

Cross-Reference

This cable is similar to Belden 89731. Same 24 AWG 7x32 tinned copper conductors, foam FEP insulation, individually shielded pairs with 100% foil and drain wire, Fluorocopolymer jacket, 100 Ohm, 300V CMP plenum rated.

All data and dimensions are nominal and subject to industry standards and may vary according to plant of manufacture.

Data is provided for informational purposes and does not create a binding obligation nor liability to the seller. Data can change without notice. All Rights Reserved Ramcorp Technologies LLC.

Belden® is a registered trademark of Belden Inc. Ramcorp Wire & Cable is not affiliated with, endorsed by, or sponsored by Belden Inc. Part numbers are used for cross-reference purposes only.
