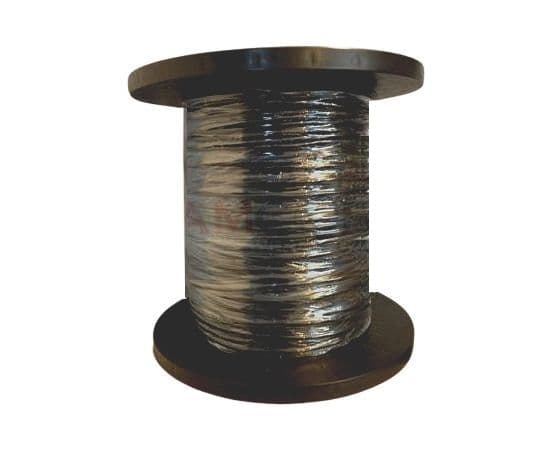

250-3 with Ground EPR-CPE Control Cable 600V Per Foot
Description
250-3 with Ground Stranded Unshielded EPR-CPE Control Cable features 3 conductors with 250MCM stranded construction. It is rated 600 Volts, 90°C, and is (UL) Type TC. This cable is listed for direct burial.
Applications
- Suitable for Class 1, Division 2 hazardous locations.
- Installs in cable trays, ducts, and conduit.
- Approved for outdoors, aerial, and direct burial.
- Used for power, control, lighting, signals, and other power and control applications.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 3 + Ground |
| Conductor Gauge Size | 250MCM (#4 Ground) |
| Conductor Type | Stranded Tinned Copper |
| Insulation Material | EPR (Ethylene Propylene Rubber) |
| Jacket Material | CPE (sunlight resistant thermoplastic Chlorinated Polyethylene) |
| Conductor Material | Tinned Copper |
| Shield (Y N) | No |
| Temperature | 90°C |
| Voltage | 600 Volts |
| Approvals | (UL) Type TC |
| Color Code | ICEA Method 4 (M4) Printed Numbers |
| Item Type | EPR-CPE Control Cable with Ground |
| Weight /LBS per 1000FT | 3130 |
| Strand Count | 37 (Tinned Copper per ASTM B-3 and B-33) |
| Outdoor (Y N) | Yes |
| Insulation Thickness (Inches Nom.) | 0.068 |
| Outer Diameter (MM Nom.) | 1.78 |
| Amps* | 290 |
