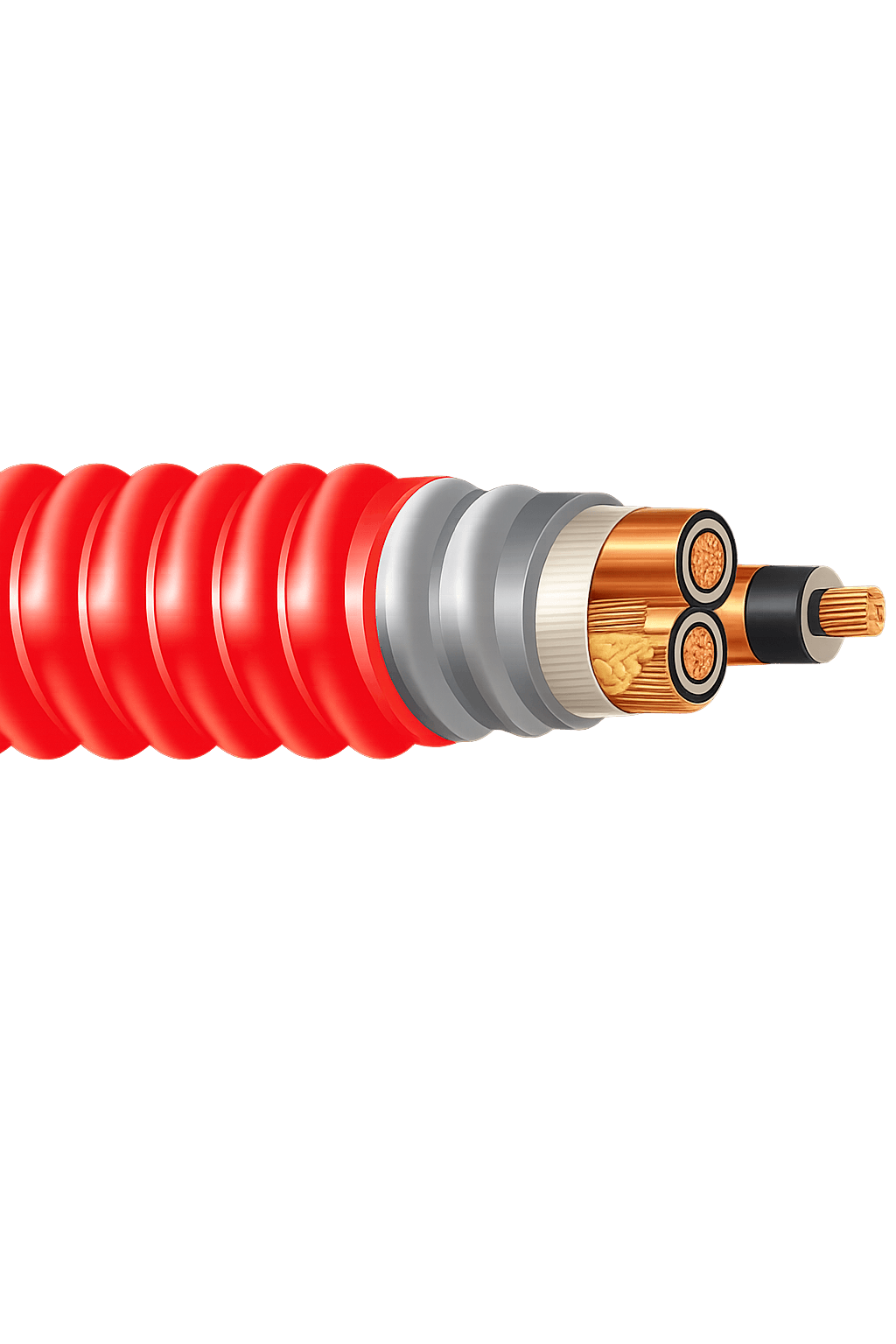

350 kcmil (MCM) 3-Conductor Armored Shielded EPR/PVC MV-105 Cable – 15 kV

This 350 kcmil (MCM) 3-conductor MV-105 power cable is designed for 15 kV medium-voltage electrical distribution in demanding industrial, utility, and commercial environments. It is constructed with three stranded bare copper conductors, EPR insulation, copper tape shielding, and aluminum interlocked armor, providing a durable and reliable solution for critical power circuits.

The 350 kcmil conductor size offers an excellent balance of high ampacity and manageable cable diameter, making this cable well suited for feeders, substations, transformers, and large motor connections where long service life and electrical performance are essential.

Construction Overview

• Armor: Yes (aluminum interlocked armor)
• Conductor Count: 3 conductors
• Conductor Material: Bare copper
• Conductor Size: 350 kcmil (MCM)
• Conductor Type: Stranded
• Earth/Ground Wires: Yes
• Number of Ground Wires: 1 wire
• Insulation Material: EPR (Ethylene Propylene Rubber), MV-105 rated
• Jacket Material: PVC (Polyvinyl Chloride)
• Screen/Shield: Yes
• Shield Type: Copper tape
• Voltage Class: 15 kV
• Product Type: Armored medium-voltage power cable

Electrical & Mechanical Performance

This MV-105 cable is engineered to deliver high dielectric strength, excellent thermal stability, and long-term reliability. The copper tape shield helps control electrical stress and reduce EMI, while the aluminum interlocked armor protects against impact, crushing, moisture, and rodent damage.

An integrated ground wire supports effective fault clearing and enhances overall system safety, making this cable suitable for underground, outdoor, conduit, and cable tray installations.

Applications

• Medium-voltage feeders and distribution circuits
• Utility and substation power systems
• Large motors and transformer connections
• Mining, petrochemical, and energy facilities
• Industrial and outdoor power installations

Disclaimer: Product specifications, dimensions, weights, and availability are provided for reference only and are subject to change without notice. Actual construction, approvals, and performance characteristics may vary by manufacturer and production run. Always verify technical requirements, code compliance, and suitability for your specific application prior to installation. Installation must be performed by qualified personnel in accordance with applicable NEC, local codes, and project specifications.
