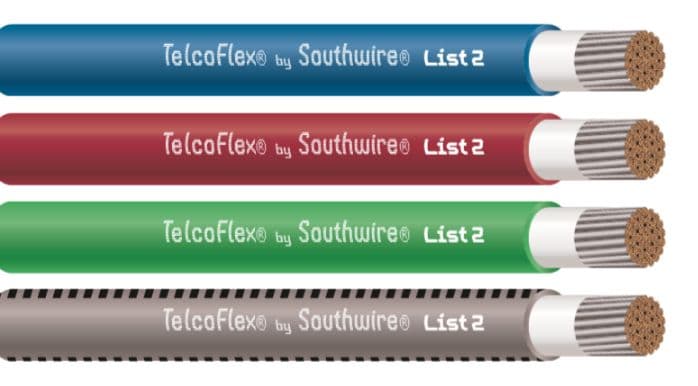

350 MCM TELCOFLEX® L2 KS-24194 Unbraided Wire

350 MCM TELCOFLEX® L2 KS-24194 Telecom Power Wire and Cable is sold and priced per foot and cut to length. It features a rope-bunched tinned copper conductor with a Mylar tape separator. Insulation is limited smoke, non-halogenated, 105°C dry, 60°C wet.

Technical Specs

Size	350 MCM
Cable type	Telecom Power Wire and Cable
Conductor	Rope-bunched tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated, 105°C dry, 60°C wet
Standards	ASTM B-33 and B-172 Class I tinned copper
UL	UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
KS	KS-24194 List 2
UL listing	UL 2731 Telecommunications Central Office Power Cable
ATIS	ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
Telecordia	GR-347-CORE
CSA	CSA AWM IB 105°C 600V. FT4-ST1
Compliance	Lead-Free, Silicone-Free, RoHS Complaint
IEC	IEC including 60674 and 60332
REACH	REACH - European Community Regulation

Applications

• Designed for central office power cable installations where telecommunications power wiring is required.
• Used in CATV head end environments where power distribution cabling is needed.
• Applied in data center applications to help route power cable runs within facility infrastructure.
• Suitable for cell tower applications where telecom power cabling is installed.

Cable Print

SIZES 1/0 AWG THROUGH 750 KCMIL: SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® II/KS24194™ L2 NON-HAL (UL) E30117 SIZE (AWG OR KCMIL) 600 VOLTS RHH ST1 FT4 FOR CT USE OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332.

Shipping & Availability

Enter the desired length above. Sold and priced per foot. Cut to length.
