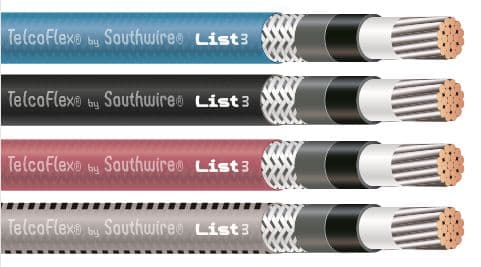

350 MCM TELCOFLEX® L3 KS-24194 Saturated Braid

Enter the desired length above. Sold and priced per foot. Cut to length.

350 MCM TELCOFLEX® L3 KS-24194 Telecom Power Wire and Cable, built with a Class B tinned copper conductor, Mylar tape separator, and limited smoke, non-halogenated insulation with an overall flame retardant saturated braid. Rated 105°C dry and 60°C wet, and listed to UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC.

Technical Specs

Size	350 MCM
Product	TELCOFLEX® L3 KS-24194 Telecom Power Wire and Cable
Conductor	Class B tinned copper
Separator	Mylar tape
Insulation	Limited smoke, non-halogenated with an overall flame retardant saturated braid
Temperature rating	105°C dry, 60°C wet
Standards / listings	ASTM B-8 and B-33 Class B tinned copper; UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC; KS-24194 List 3; UL 2731 Telecommunications Central Office Power Cable; ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems; Telecordia GR-347-CORE; CSA AWM IB 105°C 600V. FT4-ST1; Lead-Free, Silicone-Free, RoHS Complaint; IEC including 60674 and 60332; REACH - European Community Regulation

Applications

• Designed for central office installations where telecommunications power cable is specified.
• Used in CATV head end environments to support telecom power wiring needs.
• Suitable for data center applications where telecom power wire and cable is required.
• Applied in cell tower applications for telecommunications power systems.

Cable Print

SIZES 1/0 AWG THROUGH 750 KCMIL: SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® III/KS24194™ L3 NON-HAL (UL) E30117 SIZE (AWG OR KCMIL) 600 VOLTS RHH ST1 FT4 FOR CT USE OR AWM 3578 60°C WET VW-1 --- LL90458 CSA AWM I B 105°C 600 VOLTS FT4 (YYYY) (TIME JULIAN DATE) --- MEETS IEC INCLUDING 60674 & 60332
