3M 7622-S-2 (7100005956) QT-III Cold Shrink Termination Kit, 5/8/15 kV, 2 AWG - 400 kcmil, Shielded Cable, 3 Terminations/Kit, Indoor/Outdoor

The 3M™ 7622-S-2 (3M stocking number 7100005956) is a QT-III Cold Shrink silicone rubber skirted termination kit for terminating 5, 8 and 15 kV solid dielectric shielded power cable, indoors or outdoors. Each kit makes three single-phase terminations on tape shield, wire shield or UniShield® cable. The one-piece, 2-skirt termination combines a UV-stable, tracking-resistant silicone rubber insulator with High-K stress relief (stress control tube plus conformable stress controlling compound) and a built-in environmental top seal, and is qualified as an IEEE Std. 48 Class 1 termination rated 110 kV BIL (15 kV class).

Conductor Range by Voltage Class (compression lugs or connectors)

• 5 kV: 4/0 AWG – 400 kcmil
• 8 kV: 3/0 AWG – 300 kcmil
• 15 kV: 2 AWG – 4/0 AWG (35 – 120 mm²)

Final kit selection is determined by cable insulation diameter: primary insulation O.D. 0.64" – 1.08" (16,3 – 27,4 mm), jacket O.D. 0.97" – 1.48" (24,6 – 37,7 mm). The 7622-S-2(L) variant pairs with 3M™ Mechanical Shearbolt Lugs QL2 Series (1/0 – 4/0 AWG at 15 kV, part QL2-A-2-250).

Key Features

• IEEE Std. 48 Class 1 termination for 5, 8 and 15 kV cable, 110 kV BIL.
• 2-skirt outdoor design adds creepage distance for contaminated and wet environments.
• Cold shrink installation — slide over the prepared cable and unwind the core; no heat, no special tools, no force fit.
• UV-stable, tracking-resistant, hydrophobic silicone rubber insulator with High-K stress control.
• Rated for cables with 105°C (221°F) maximum continuous operating temperature and 140°C (284°F) emergency overload.

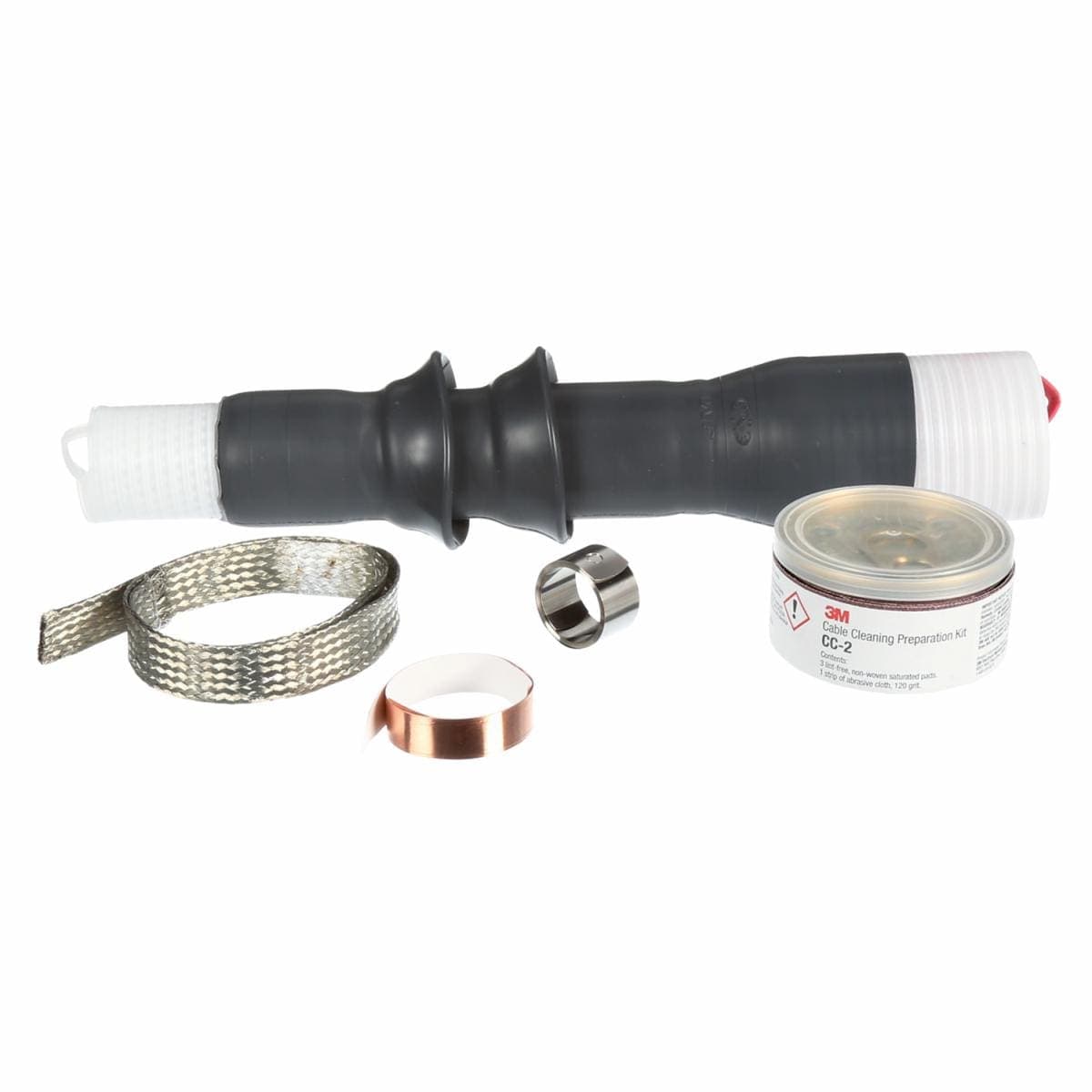

• Each kit includes 3 terminations, 3 pre-formed ground braids, 3 constant force springs, 3 EMI copper foil shielding tape strips, 6 mastic strips, a CC-2 cable cleaning preparation kit and instructions (lugs not included).

Applications

• Outdoor and indoor terminations of medium voltage shielded cable.
• Riser poles, switchgear, transformer and motor lead connections.
• Free-hanging or bracket-mounted, upright or inverted installations.
