3M 7695-T-150 (7000006105) QT-III Cold Shrink Termination Kit, 5-35 kV, 3/0 AWG - 1500 kcmil, Shielded Cable, 3 Terminations/Kit, Indoor

The 3M™ 7695-T-150 (3M stocking number 7000006105) is a QT-III Cold Shrink silicone rubber indoor tubular termination kit for terminating 5 through 35 kV solid dielectric shielded power cable. Each kit makes three single-phase terminations on tape shield, wire shield or UniShield® cable with polyethylene (PE), cross-linked polyethylene (XLPE) or EPR insulation. The one-piece, non-skirted silicone rubber termination uses High-K stress relief (stress control tube plus conformable stress controlling compound) with a built-in environmental top seal, and is qualified as an IEEE Std. 48 Class 1 termination rated 150 kV BIL.

Conductor Range by Voltage Class (compression lugs or connectors)

• 5 kV: 700 – 1500 kcmil
• 8 kV: 600 – 1250 kcmil
• 15 kV: 500 – 1000 kcmil (240 – 500 mm²)
• 25/28 kV: 250 – 800 kcmil (150 – 400 mm²)
• 35 kV: 3/0 AWG – 600 kcmil (95 – 325 mm²)

Final kit selection is determined by cable insulation diameter: primary insulation O.D. 1.05" – 1.80" (26,7 – 45,7 mm).

Key Features

• IEEE Std. 48 Class 1 termination for 5, 8, 15, 25/28 and 35 kV cable, 150 kV BIL.
• Cold shrink installation — slide over the prepared cable and unwind the core; no heat, no special tools, no force fit.
• High-K stress control distributes the electrical field uniformly, keeping insulator surface stress below 15 V/mil at rated voltage.
• Tracking-resistant, hydrophobic dark gray silicone rubber insulator in a compact, non-skirted tubular design for restricted spaces.
• Rated for cables with 105°C (221°F) maximum continuous operating temperature and 140°C (284°F) emergency overload.

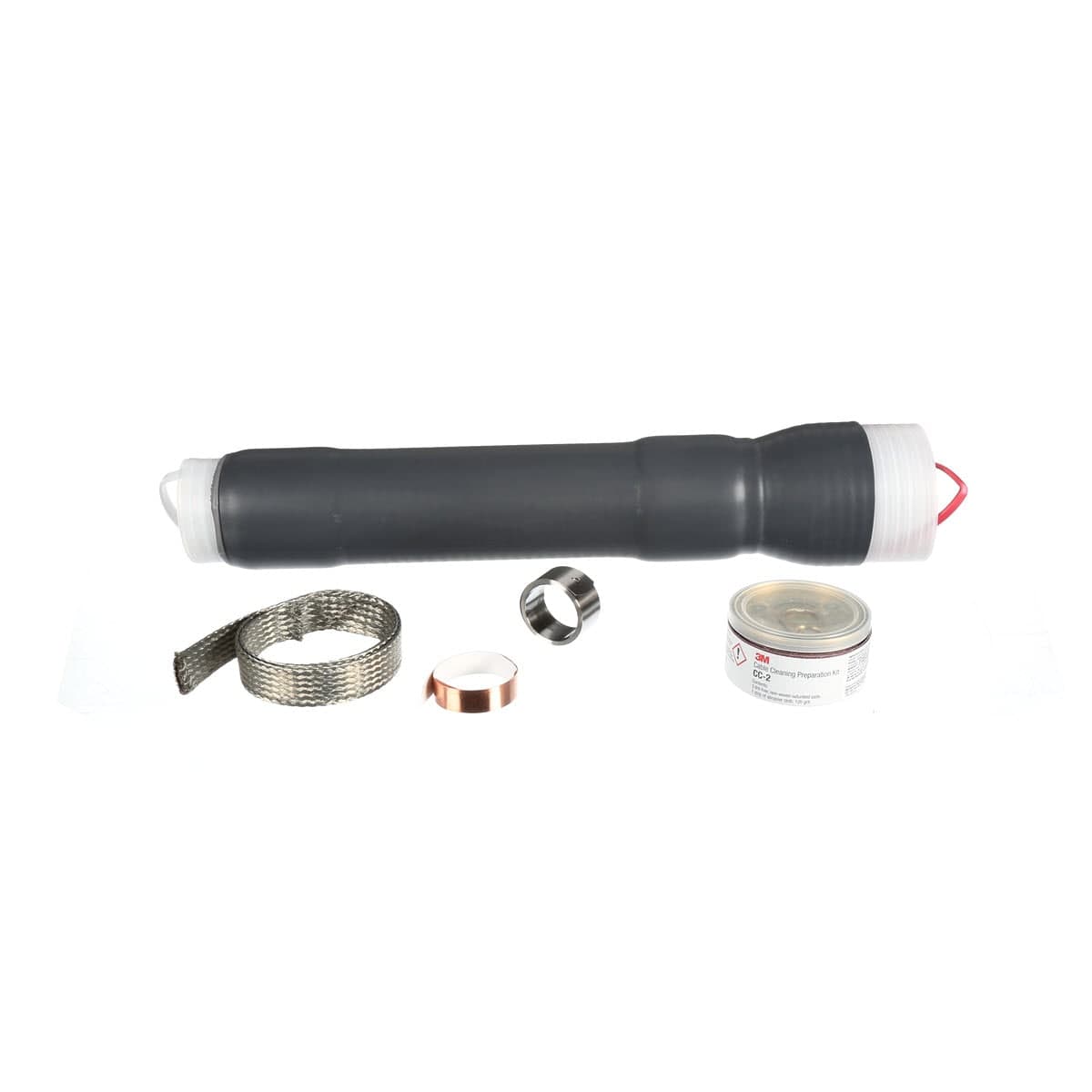

• Each kit includes 3 terminations, 3 pre-formed ground braids, 3 constant force springs, 3 EMI copper foil shielding tape strips, 6 mastic strips, a CC-2 cable cleaning preparation kit and instructions (lugs not included).

Applications

• Indoor and weather-protected locations, including pad-mounted switchgear and transformer enclosures.
• Switchgear, transformer, motor lead and bus connections.
• Free-hanging or bracket-mounted, upright or inverted installations.

3M™, Scotch® and Scotchlok™ are trademarks of 3M Company. UniShield® is a trademark of General Cable Technologies Corporation. All other trademarks are the property of their respective owners.
