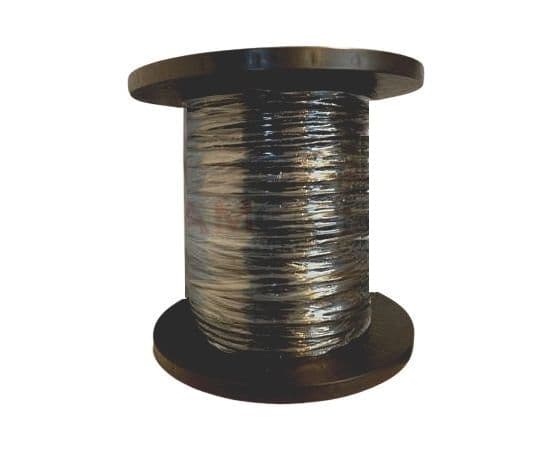

4/0-3 with Ground EPR-CPE Control Cable 600V Per Foot
SKU:EPRCPE-4/0-3-TNC-WG
$32.63/ each
● In stock
Description
4/0-3 with Ground Stranded Unshielded EPR-CPE Control Cable has 3 conductors with AWG 4/0/Stranded construction. It is rated 600 Volts and 90°C. (UL) Type TC, it is listed for Direct Burial.
Applications
- It is suitable for Class 1, Division 2 hazardous locations.
- It supports installation in cable trays, ducts and conduit.
- It is approved for outdoors, aerial and direct burial installations.
- It is designed for use in power, control, lighting, signals and other power and control applications.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 3 + Ground |
| Conductor Gauge Size | 4/0 (#4 Ground) |
| Conductor Type | Stranded Tinned Copper |
| Insulation Material | EPR (Ethylene Propylene Rubber) |
| Jacket Material | CPE (sunlight resistant thermoplastic Chlorinated Polyethylene) |
| Conductor Material | Tinned Copper |
| Shield (Y N) | No |
| Temperature | 90°C |
| Voltage | 600 Volts |
| Approvals | (UL) Type TC |
| Color Code | ICEA Method 4 (M4) Printed Numbers |
| Item Type | EPR-CPE Control Cable with Ground |
| Weight /LBS per 1000FT | 2580 |
| Strand Count | 19 (Tinned Copper per ASTM B-3 and B-33) |
| Outdoor (Y N) | Yes |
| Insulation Thickness (Inches Nom.) | 0.057 |
| Outer Diameter (MM Nom.) | 1.58 |
| Amps* | 260 |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
