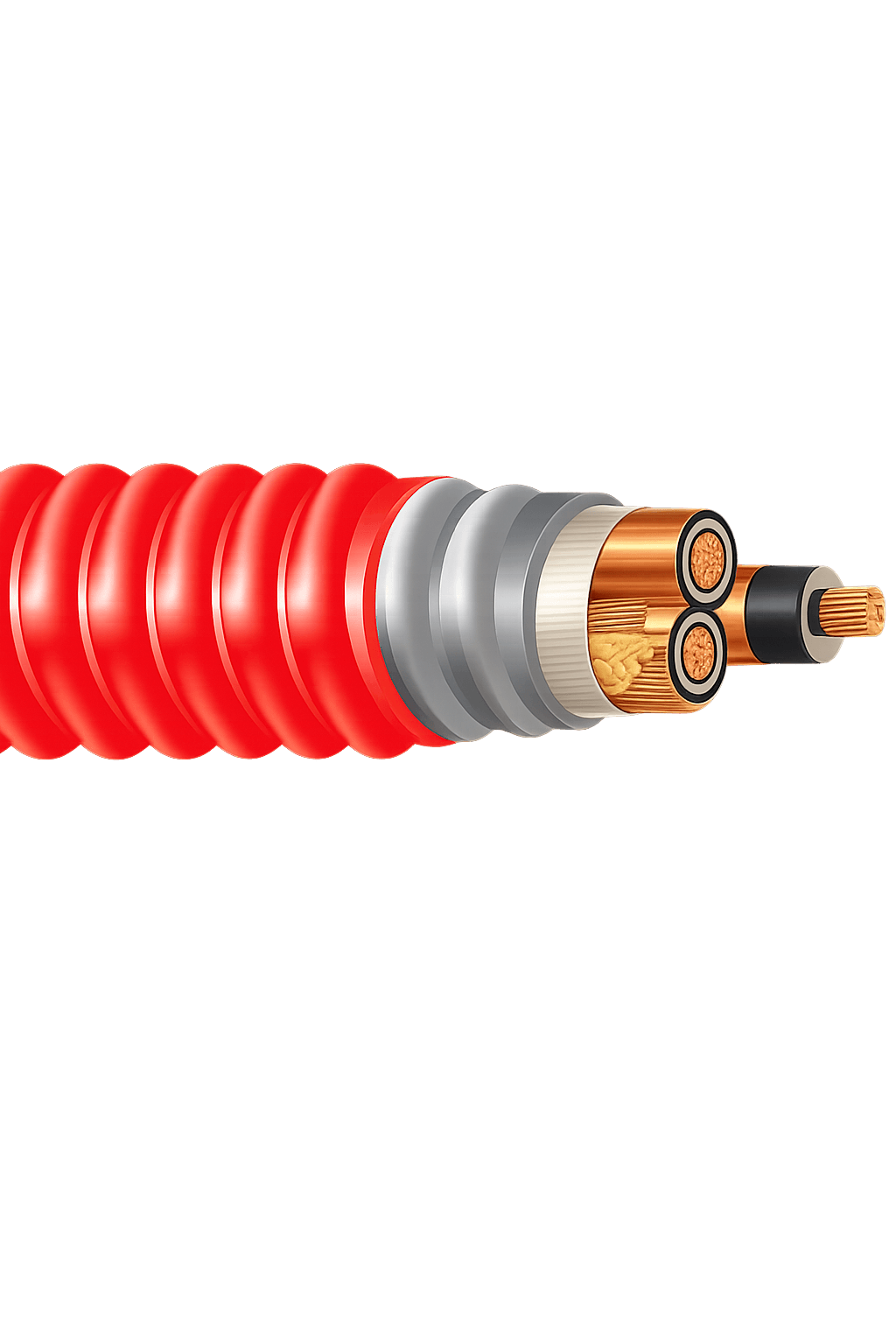

500 kcmil (MCM) 3-Conductor Armored Shielded EPR/PVC MV-105 Cable – 15 kV

This 500 kcmil (MCM) 3-conductor MV-105 power cable is engineered for 15 kV medium-voltage electrical distribution in demanding industrial, utility, and commercial environments. It features stranded bare copper conductors, EPR insulation, copper tape shielding, and a PVC-jacketed aluminum interlocked armor system, providing both electrical integrity and mechanical protection for critical power circuits.

With its large 500 kcmil conductor size and three-conductor construction, this cable is ideal for high-ampacity feeders, substations, transformers, and large motor applications where low voltage drop and long-term reliability are required.

Construction Overview

• Armor: Yes (aluminum interlocked armor for mechanical protection)
• Conductor Count: 3 conductors
• Conductor Material: Bare copper
• Conductor Size: 500 kcmil (MCM)
• Conductor Type: Stranded
• Earth/Ground Wires: Yes
• Number of Ground Wires: 1 wire
• Insulation Material: EPR (Ethylene Propylene Rubber), MV-105 rated
• Jacket Material: PVC (Polyvinyl Chloride)
• Screen/Shield: Yes
• Shield Type: Copper tape
• Voltage Class: 15 kV
• Product Type: Armored medium-voltage power cable

Electrical & Mechanical Performance

This MV-105 cable is designed to provide high dielectric strength, excellent thermal stability, and long service life in harsh operating environments. The copper tape shield controls electrical stress and minimizes EMI, while the armored PVC jacket protects the cable against crushing, impact, moisture, and rodent damage.

The integrated ground wire improves fault clearing and enhances overall system safety, making this cable suitable for underground, outdoor, conduit, and tray installations.

Typical Applications

• Medium-voltage feeders and distribution circuits
• Utility and substation power systems
• Large motors and transformer connections
• Mining, petrochemical, and energy facilities
• Industrial and outdoor power installations

Disclaimer: Product specifications, dimensions, weights, and availability are provided for reference only and are subject to change without notice. Actual construction, approvals, and performance characteristics may vary by manufacturer and production run. Always verify technical requirements, code compliance, and suitability for your specific application prior to installation. Installation must be performed by qualified personnel in accordance with applicable NEC, local codes, and project specifications.
