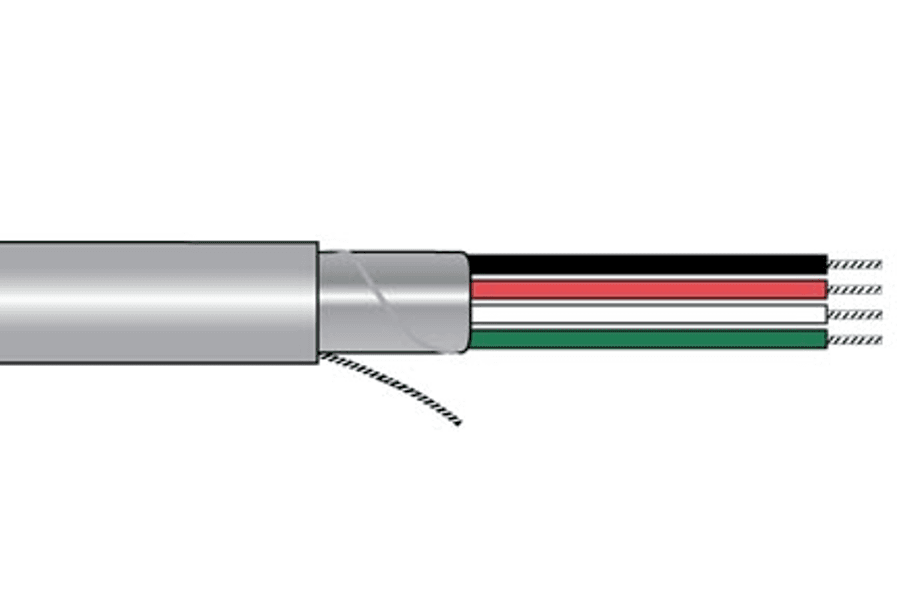

Alpha Wire 1213C SL001, Communication Control Industrial Cable 3C 24 AWG Foil 300 V PVC

Part Number: 1213C SL001

Alpha Wire 1213C SL001 is a communication and control industrial cable built for reliable signal integrity in demanding installations. It features 3 conductors of 24 AWG (American Wire Gauge) stranded tinned copper with an overall foil shield and drain to help reduce EMI/RFI. The cable uses PVC-polyvinyl chloride insulation and a PVC-polyvinyl chloride jacket, rated 300 V and finished in Slate for easy identification. Designed for general purpose applications, it is UL Listed Art 800 and includes the manufacturer’s specified jacket print for compliance and traceability.

Conductors:

• Number of conductors: 3 conductors
• Conductor size: 24 AWG (American Wire Gauge)
• Conductor stranding: 24 (7/32) AWG tinned copper
• Conductor type: Stranded conductor
• Conductor material: Tinned copper
• Component makeup: 3 X 1 COND
• Conductor diameter ("in"): 0.024

Insulation:

• Insulation material: PVC-polyvinyl chloride
• Insulation construction: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulation diameter ("in"): 0.044

Color Code:

• Color code: Alpha Wire Color Code D
• Conductor 1 color: Black
• Conductor 2 color: Red
• Conductor 3 color: White

Cabling / Lay:

• Cable assembly: 3 Components Cabled
• Twists: 9.6 Twists/foot (min)
• Orientation: Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

Shielding:

• Shield present: Yes
• Screen/shield type: Foil shielded - Alum/Mylar
• Shield construction: Overall shield & drain
• Shield material: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing Out
• Drain wire: 24 (7/32) AWG tinned copper

Jacket:

• Jacket material: PVC-polyvinyl chloride
• Jacket construction: .032" Wall, Nom., PVC
• Jacket color(s): Slate
• Overall diameter ("in"): 0.163 (0.173 Max.)

Ratings & Compliance:

• Voltage rating: 300 V
• Fire rating: General purpose
• NEC rating: UL Listed Art 800

Cable Print (as marked):

• ALPHA WIRE-* P/N 1213C 3C 24 AWG
   SHIELDED 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX
   CSA TYPE CMG FT4 CE ROHS
   * = Factory Code
   Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.
