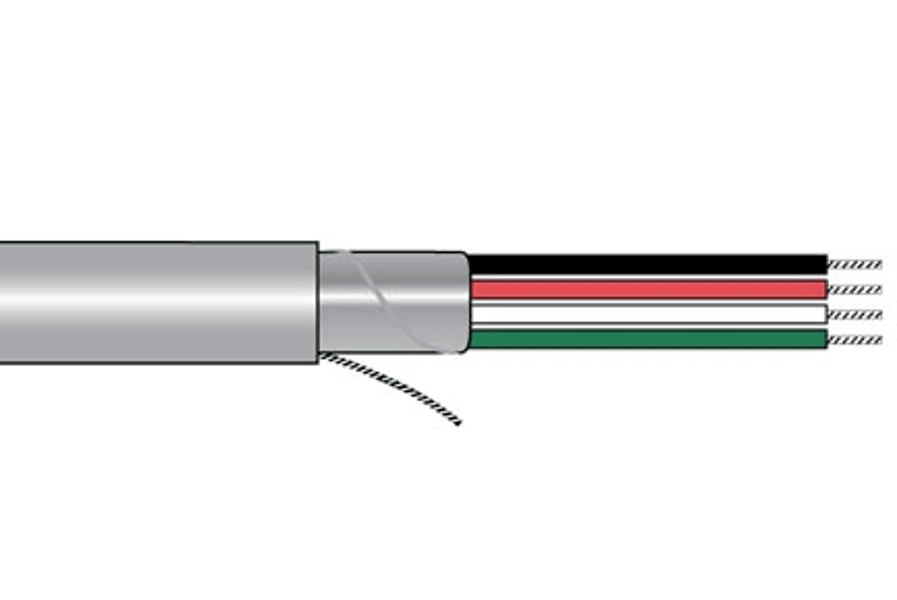

Alpha Wire 1214C SL001, Communication Control Industrial Cable 4C 24 AWG Foil 300 V PVC

Part Number: 1214C SL001

Alpha Wire 1214C SL001 is a communication and control industrial cable built for reliable signal transmission in demanding environments. It features 4 conductors of 24 AWG (AMERICAN WIRE GAUGE) stranded tinned copper with PVC-POLYVINYL CHLORIDE insulation and a PVC-POLYVINYL CHLORIDE jacket. For improved noise rejection, it includes a foil shielded - alum/mylar overall shield & drain with Alum/Mylar Tape, 25% Overlap, Min. Rated 300 V and designed for general purpose use, it is UL Listed Art 800 and includes the manufacturer print marking shown below.

Conductors:

• Number of conductors: 4 conductors
• Conductor size: 24 AWG (AMERICAN WIRE GAUGE)
• Conductor stranding/type: Stranded conductor
• Conductor material: Tinned copper
• Conductor construction: 24 (7/32) AWG Tinned Copper
• Conductor diameter: 0.024

Insulation:

• Insulation material: PVC-POLYVINYL CHLORIDE
• Insulation construction: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated conductor diameter: 0.044
• Color code: Alpha Wire Color Code D
• Conductor 1 color: Black
• Conductor 2 color: Red
• Conductor 3 color: White
• Conductor 4 color: Green

Cabling:

• Cable assembly: 4 Components Cabled
• Twists: 8.0 Twists/foot (min)
• Orientation: Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

Shielding:

• Shielding: Yes
• Screen/shield type: Foil shielded - alum/mylar
• Shield construction: Overall shield & drain
• Shield material: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing Out
• Drain wire: 24 (7/32) AWG Tinned Copper

Jacket:

• Jacket material: PVC-POLYVINYL CHLORIDE
• Jacket construction: 0.032" Wall, Nom., PVC
• Overall diameter: 0.174 (0.185 Max.)
• Jacket color(s): Slate

Electrical & Ratings:

• Voltage rating: 300 V
• Fire rating: General purpose
• NEC rating: UL Listed Art 800

Cable Print (as marked):

• ALPHA WIRE-* P/N 1214C 4C 24 AWG
  SHIELDED 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX
  CSA TYPE CMG FT4 CE ROHS
  * = Factory Code
  Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.
