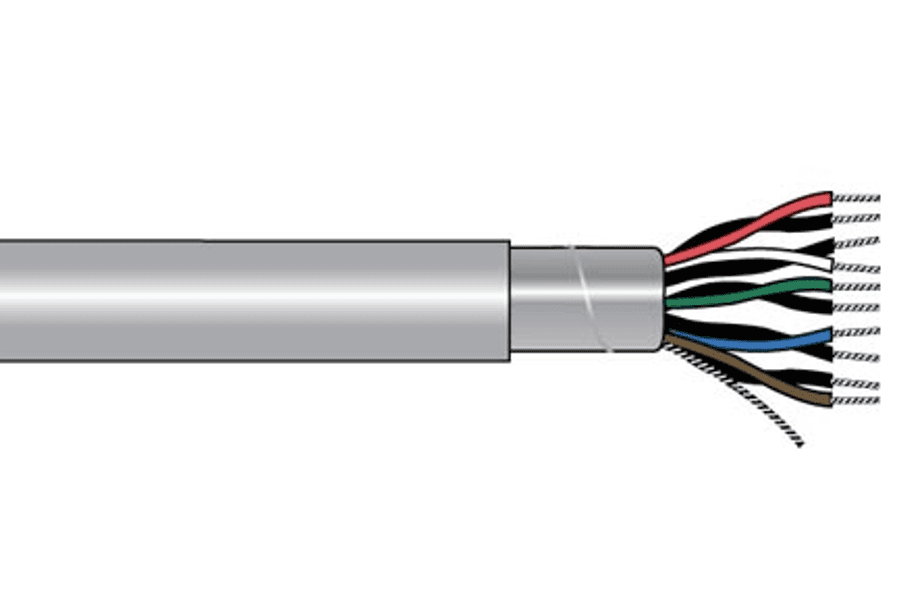

Alpha Wire 2214C SL001, Communication Control Industrial Cable 4 Pair 22 AWG Foil 150 V PVC

Part Number: 2214C SL001

Alpha Wire 2214C SL001 is a communication and control industrial cable built for reliable signal transmission in demanding environments. It features 4 pairs of 22 AWG (American Wire Gauge) Stranded Tinned Copper Conductors with an Overall Foil Shield and drain to help reduce EMI/RFI. Semi-rigid PVC Insulation and a PVC Jacket provide durable mechanical protection, while the slate Jacket Color supports clean, professional installations. Rated 150 V and designed to meet UL Listed Art 800 requirements, it’s well-suited for industrial control, instrumentation, and general-purpose communication wiring.

Conductors:

• Number Of Conductors: 4 pairs
• Component build: 4 x 1 pair
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Stranding: 22 (7/30) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter ("in"): 0.030

Insulation:

• Insulation Material: PVC-Polyvinyl Chloride
• Insulation Type: 0.010" Wall, Nom. PVC, Semi-Rigid
• Insulation Diameter ("in"): 0.050

Pairing, Twists, and Color Code:

• Pair construction: 2/Cond cabled together
• Pair twists: 8.0 Twists/foot (min.)
• Cable assembly: 4 components cabled
• Cable assembly twists: 4.4 Twists/foot (min.)
• Orientation: Components to be arranged from Inside Layer-to-Outside Layer
• Color code: Alpha Wire Color Code A
• Pair 1 color: Black-Red
• Pair 2 color: Black-White
• Pair 3 color: Black-Green
• Pair 4 color: Black-Blue

Shielding:

• Shield: Yes
• Screen/Shield Type: Foil shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Shield: Alum/Mylar Tape, 25% Overlap (min.)
• Foil direction: Foil Facing Out
• Drain Wire: 22 (7/30) AWG Tinned Copper

Jacket:

• Jacket Material: PVC-Polyvinyl Chloride
• Jacket Type: 0.032" Wall, Nom. PVC
• Jacket Diameter ("in"): 0.266 (0.281 max.)
• Jacket Color: Slate

Ratings and Compliance:

• Voltage Rating: 150 V
• Fire Rating: General Purpose
• NEC rating: UL Listed Art 800

Cable Print (as marked):

• ALPHA WIRE-* P/N 2214C 4PR 22 AWG
  SHIELDED 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX
  CSA TYPE CMG FT4 CE ROHS
  * = Factory Code
  Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.
