Alpha Wire 25196 BK199, Xtra Guard 2 22 AWG 6C Foil 300 Volts PUR Cable

Part Number: 25196 BK199

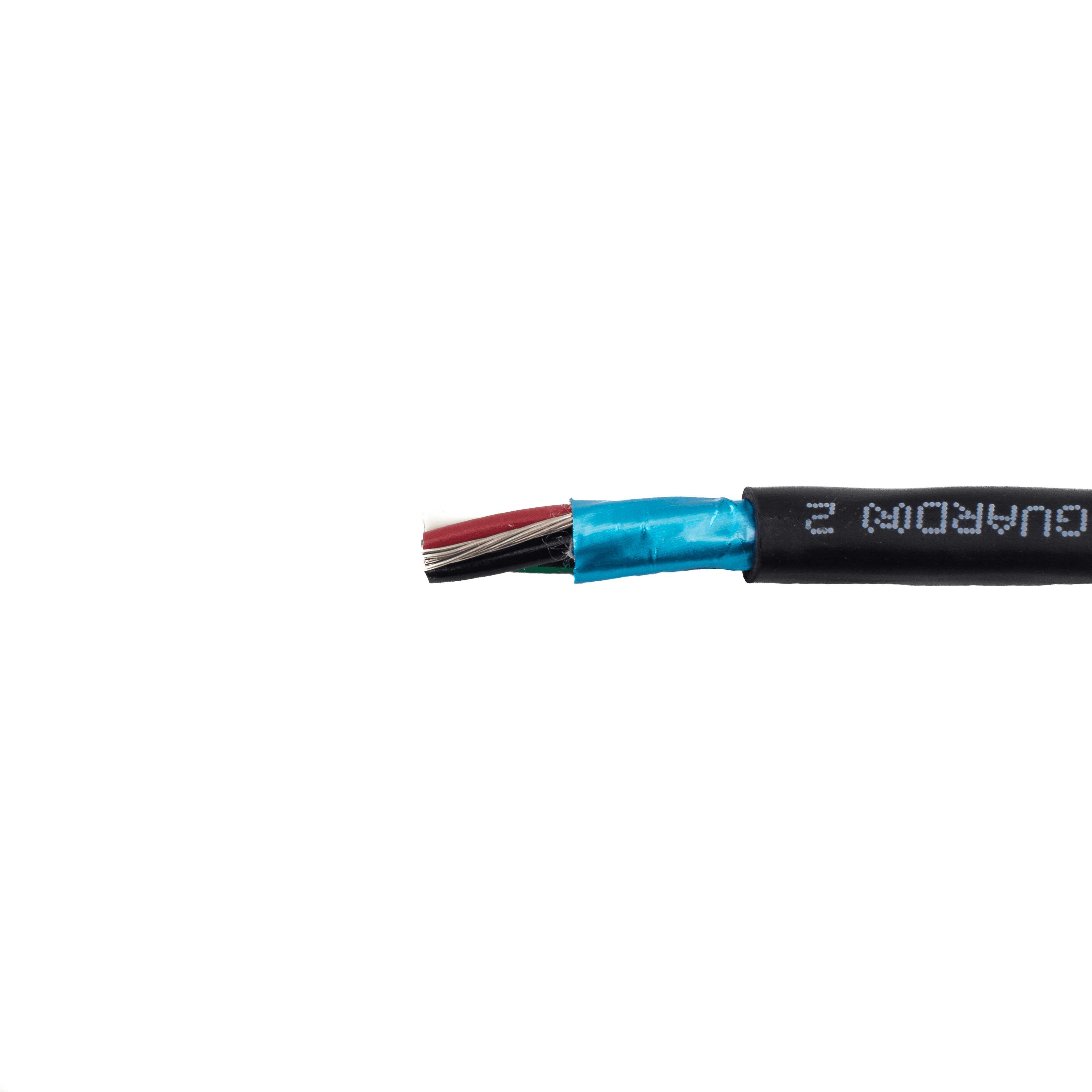

Alpha Wire 25196 BK199 Xtra Guard 2 is a 22 AWG, 6-Conductor shielded Control Cable designed for reliable signal integrity in electrically noisy environments. It features Stranded 22 (7/30) AWG Tinned Copper Conductors with semi-rigid PVC Insulation and an overall Alum/Mylar Foil Shield with a Tinned Copper Drain Wire. A tough PUR-Polyurethane (TPU) Jacket and ripcord support durability and easier stripping, while the cable is rated 90C 300 VOLTS and marked for AWM 20668 and FT1/CE use. This construction is well-suited for industrial automation, instrumentation, and general-purpose applications requiring flexibility and shielding.

Conductors:

• Number Of Conductors: 6 Conductors
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Stranding: 22 (7/30) AWG Tinned Copper
• Conductor Material: Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Diameter: 0.030 in

Insulation:

• Insulation Material: SRPVC-Semi-Rigid Polyvinyl Chloride
• Insulation description: 0.010" wall, nom. PVC, semi rigid
• Insulated Conductor Diameter: 0.050 in

Color Code:

• Color code standard: Alpha Wire Color Code E
• Conductor 1: Black
• Conductor 2: Brown
• Conductor 3: Red
• Conductor 4: Orange
• Conductor 5: Yellow
• Conductor 6: Green

Cabling & Core Wrap:

• Cable assembly: 6 components cabled
• Twist rate: 5.3 twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven polyester tape, 25% overlap, min.

Shielding:

• Shield: Yes
• Screen/Shield Type: Foil shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Shield tape: Alum/Mylar tape, 25% overlap, min.
• Foil direction: Foil facing in
• Drain Wire: 22 (7/30) AWG Tinned Copper

Jacket:

• Jacket Material: PUR-Polyurethane
• Jacket description: 0.032" wall, nom., Polyurethane (TPU)
• Overall Diameter: 0.223 in (0.235 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 end 810 denier nylon

Ratings & Compliance:

• Voltage Rating: 300 Volts
• Temperature Rating: 90C
• Fire Rating: General Purpose
• AWM style: AWM 20668
• Additional markings: VW-1 or CRU; AWM I/II A/B; FT1; CE; ROHS

Cable Print (As Marked):

• ALPHA WIRE-* P/N 25196
  XTRAGUARD(R) 2 RU AWM 20668 VW-1 OR CRU
  AWM I/II A/B 90C 300 VOLTS FT1 CE
  ROHS (SEQ FOOTAGE)
  * = Factory Code
