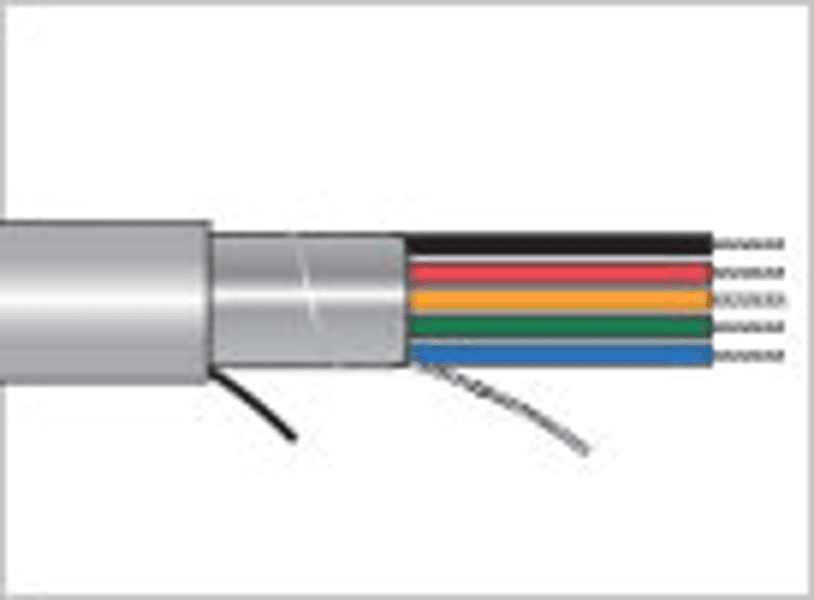

Alpha Wire 45199/20 BK199, XTRA-GUARD 4 22AWG 20C Shielded TPE Black

Part Number: 45199/20 BK199

Alpha Wire 45199/20 BK199 XTRA-GUARD 4 is a 20-Conductor, 22 AWG shielded multi-Conductor cable built with Stranded Tinned Copper Conductors and Tpe-Thermoplastic Elastomer Insulation and Jacket. It features an Overall Foil Shield (Alum/Mylar) with an overall Shield & drain design to help reduce EMI in sensitive control and signal applications. The cable is cabled with 2.5 Twists/foot (min) and includes a nonwoven polyester tape core wrap for added stability. A 0.055" wall nominal TPE Jacket provides a finished Diameter of 0.445 (0.466 Max.) and includes a nylon ripcord for easier stripping.

Conductor

• Number Of Conductors: 20 Conductors
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Stranding/type: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Construction (manufacturer): 22 (7/30) AWG Tinned Copper
• Conductor Diameter (In): 0.030

Insulation

• Insulation Material: Tpe-Thermoplastic Elastomer
• Insulation wall: 0.016" Wall, Nom. TPE
• Insulated Conductor Diameter (In): 0.062

Cabling & Core Wrap

• Cable assembly (manufacturer): 20 Components Cabled
• Twists: 2.5 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 20% Overlap, Min.

Shielding

• Shield: Yes
• Screen/Shield Type: Foil shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Shield (manufacturer): Alum/Mylar Tape, 20% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 22 (7/30) AWG Tinned Copper

Jacket

• Jacket Material: Tpe-Thermoplastic Elastomer
• Jacket wall: 0.055" Wall, Nom.,TPE
• Overall Diameter: 0.445 (0.466 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 End 810 Denier Nylon

Color Code

• Color code: Alpha Wire Color Code E
• 1: Black
• 2: Brown
• 3: Red
• 4: Orange
• 5: Yellow
• 6: Green
• 7: Blue
• 8: Violet
• 9: Slate
• 10: White
• 11: White/Black
• 12: White/Brown
• 13: White/Red
• 14: White/Orange
• 15: White/Yellow
• 16: White/Green
• 17: White/Blue
• 18: White/Violet
• 19: White/Slate
• 20: White/Black/Brown

Ratings & Compliance

• Fire Rating: General Purpose
• NEC rating: Not listed by UL under NEC

Cable Print (as marked)

• ALPHA WIRE-* P/N 45199/20 20C 22 AWG
  XTRAGUARD(R) 4 (UL) TYPE PLTC 105C SUN RES OR AWM
  20237/21918 125C 300 V OR
  CRU AWM I/II A/B 125C 300 V FT1
  P-07-KA140023-MSHA CE ROHS
  (SEQ FOOTAGE)
  * = Factory Code
