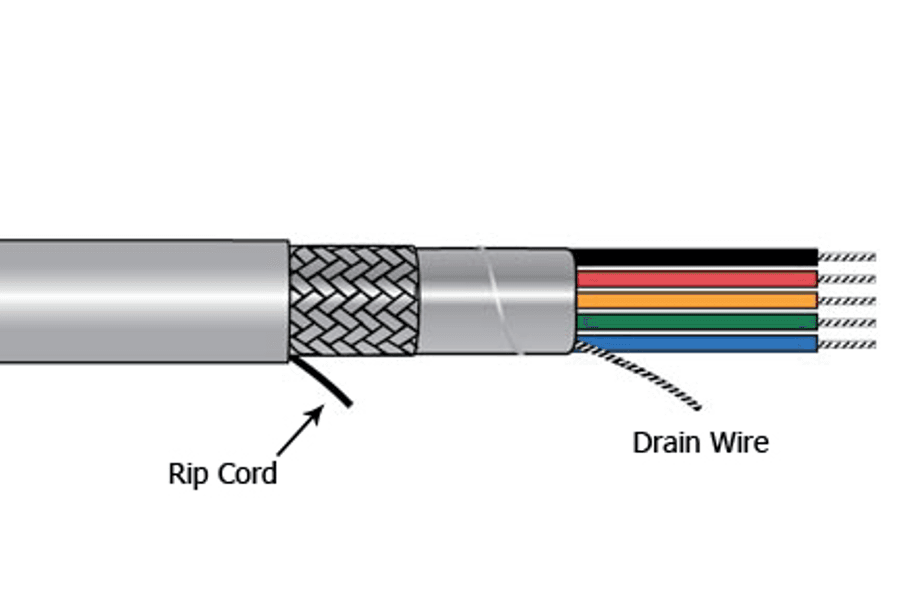

Alpha Wire 5174C SL001, Xtra Guard 1 4C 16 AWG Shielded 300 V PVC Cable

Part Number: 5174C SL001

Alpha Wire 5174C SL001 Xtra Guard 1 is a 4-Conductor, 16 AWG shielded PVC cable designed for reliable signal and control wiring in electrically noisy environments. It features Stranded 16 (19/.0117) AWG Tinned Copper Conductors with an overall foil-and-Braid Shield (braid over foil) plus a Tinned Copper Drain Wire for effective grounding. Built with Nom. PVC Insulation and a Nom. PVC Jacket, it supports 300 V applications and includes a ripcord for easier Jacket removal. The cable is identified by the factory print shown below and is listed as UL Listed Art 800 with a General Purpose Fire Rating.

Conductors:

• Number Of Conductors: 4 Conductors
• Configuration: 4 X 1 Cond
• Conductor Size: 16 AWG (American Wire Gauge)
• Conductor Construction: 16 (19/.0117) AWG Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Diameter (in): 0.059

Insulation:

• Insulation Material: Pvc-Polyvinyl Chloride
• Insulation: 0.016" Wall, Nom. PVC
• Insulated Conductor Diameter (in): 0.091

Cabling & Core Wrap:

• Cable assembly: 4 components cabled
• Twists: 3.7 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Shielding:

• Shielded: Yes
• Screen/Shield Type: Braid over Foil Shield
• Shield Construction: Overall foil & braid
• Shield: A/P/A Tape, 25% Overlap, Min.
• Drain Wire: 16 (19/.0117) AWG Tinned Copper
• Braid: Tinned Copper,70% Coverage, Nom.

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket: 0.032" Wall, Nom.,PVC
• Overall Diameter (in): 0.316 (0.328 Max.)
• Jacket Color(s): Slate
• Ripcord: 1 End 810 Denier Nylon

Color Code:

• Color code: Alpha Wire Color Code D
• Conductor 1 color: Black
• Conductor 2 color: Red
• Conductor 3 color: White
• Conductor 4 color: Green

Ratings & Compliance:

• Voltage Rating: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Cable Print (as marked):

• ALPHA WIRE-* P/N 5174C 4C 16 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 OR C(UL) TYPE CMG 105C FT4 CE ROHS
  Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
