Alpha Wire 5199/10C SL001, Xtra Guard 1 10C 22 AWG Foil 300 V PVC Cable

Part Number: 5199/10C SL001

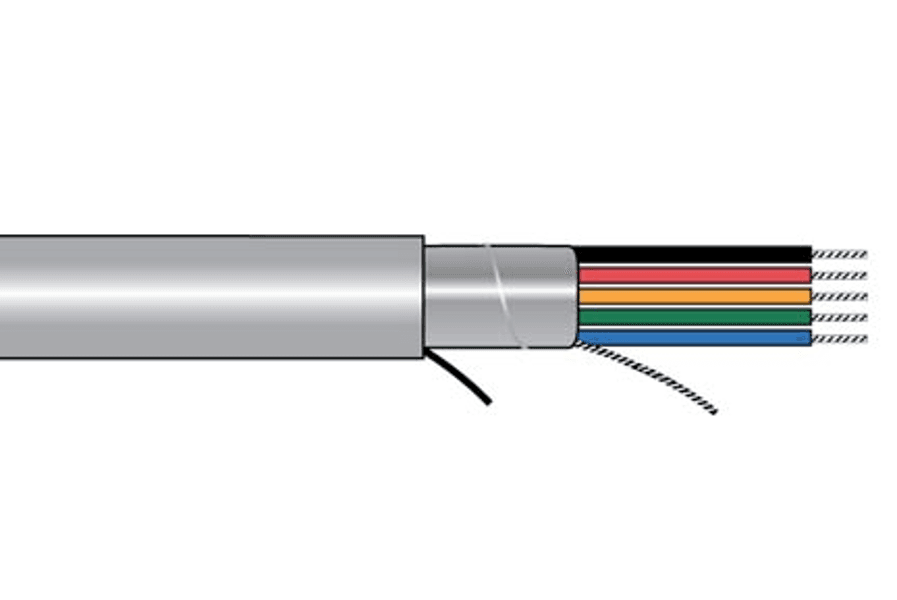

Alpha Wire 5199/10C SL001 Xtra Guard 1 is a 10-Conductor, 22 AWG shielded PVC cable designed for reliable signal and control wiring in industrial and commercial environments. It features Stranded 22 (7/30) AWG Tinned Copper Conductors with semi-rigid PVC Insulation, plus an Overall Foil Shield with Drain Wire to help reduce EMI/RFI. The construction includes a nonwoven polyester tape core wrap and a durable PVC Jacket with a 0.032" nominal wall and 0.272 (0.287 Max.) Overall Diameter. Markings include XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES and AWM 2464 80C 300V / AWM 2517 105C 300V, supporting broad installation and compliance needs.

Conductors:

• Number Of Conductors: 10 Conductors
• Conductor Size: 22 AWG (American Wire Gauge)
• Conductor Stranding: 22 (7/30) AWG Tinned Copper
• Conductor Type: Stranded Conductor
• Conductor Material: Tinned Copper
• Conductor Diameter (in): 0.030

Insulation:

• Insulation Material: SRPVC-Semi-Rigid Polyvinyl Chloride
• Insulation: 0.010" Wall, Nom. PVC, Semi Rigid
• Insulated Conductor Diameter (in): 0.050

Shielding:

• Shield: Yes
• Screen/Shield Type: Foil shielded - Alum/Mylar
• Shield Construction: Overall Shield & drain
• Shield: Alum/Mylar Tape, 25% Overlap, Min.
• Foil direction: Foil Facing In
• Drain Wire: 22 (7/30) AWG Tinned Copper

Cabling & Core Wrap:

• Cable assembly: 10 Components Cabled
• Twists: 4.0 Twists/foot (min)
• Orientation: Components to be arranged from Inside Layer to Outside Layer
• Core wrap: Nonwoven Polyester Tape, 25% Overlap, Min.

Jacket:

• Jacket Material: Pvc-Polyvinyl Chloride
• Jacket: 0.032" Wall, Nom.,PVC
• Overall Diameter (in): 0.272 (0.287 Max.)
• Jacket colors: Slate
• Ripcord: 1 End 810 Denier Nylon

Color Code (Alpha Wire Color Code E):

• 1: Black
• 2: Brown
• 3: Red
• 4: Orange
• 5: Yellow
• 6: Green
• 7: Blue
• 8: Violet
• 9: Slate
• 10: White

Ratings & Compliance:

• Voltage: 300 V
• NEC rating: UL Listed Art 800
• Fire Rating: General Purpose

Cable Print (as marked):

• ALPHA WIRE-* P/N 5199/10C 10C 22 AWG
  XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C SUN RES
  OR AWM 2464 80C 300V OR AWM 2517 105C 300V
  VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
  CE ROHS Oil Resistant (SEQ FOOTAGE)
  * = Factory Code
  [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
